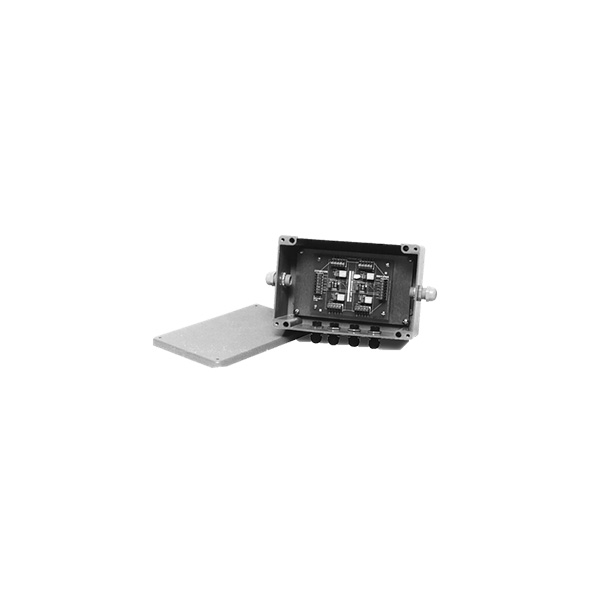

EL304A Signal Trim Junction Box

EL304A Signal Trim Junction Box

Tipo NEMA 4X, recinto de poliéster reforzado con fibra de vidrio (FRP)
Accesorios de cable de alivio de tensión
Interruptores de desconexión de señal de célula individual
Número de celdas: 2 o 4 celdas individuales (incluso el número de celdas solamente)
Puerto de expansión

Categoría:

Descripción

[vc_row el_id="informacion"][vc_column][ultimate_heading main_heading="Reliable and Cost-Effective"]With the 120 digital weight indicator, there is no need to sacrifice quality for price. This digital weight indicator is designed to be a reliable, cost-effective solution for material handling or shipping and receiving applications. The 120 drives up to four 350Ω load cells while three-stage digital filtering provides stable, accurate weight data. The 120’s five-button tactile front panel and easy-to-read LED display help to make scale operations effortless. Two independent communication ports provide full EDP and print ticket programmability.[/ultimate_heading][vc_tta_accordion active_section="1" collapsible_all="true"][vc_tta_section title="EL304A Signal Trim Junction Box Specifications" tab_id="1521654435692-d6b73376-e0b1"][vc_column_text]

Cable Fittings:

4 nylon cable strain reliefs 0.079-0.236 in (2.0-6.0 mm)
2 nylon cable strain reliefs 0.236-0.354 in (6.0-9.0 mm)

Connectors:

Electrovert 0.197 in (5.0 mm) miniature screw terminals. Maximum wire size
# 14 AWG

















 Trimming:

Individual cell and section, signal trim



Potentiometers:

100,000 ohms, 25-turn cermet

Enclosure:

FRP NEMA Type 4X, 40 PSI washdown













Circuit Board:
5.5 in x 4 in (139.7 mm x 101.6 mm) with anti-fungal coating

Warranty:
One-year limited warranty





















[/vc_column_text][/vc_tta_section][vc_tta_section title="EL304A Signal Trim Junction Box Dimensions" tab_id="1521654435774-9820b471-daa7"][vc_single_image image="2367" img_size="full" label=""][/vc_tta_section][/vc_tta_accordion][/vc_column][/vc_row][vc_row el_id="recursos"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="Recursos / Descargas"][/ultimate_heading][vc_tta_accordion active_section="1" collapsible_all="true"][vc_tta_section title="Specifications Page" tab_id="1521654929872-40541558-89ff"][vc_column_text]

EL304A Signal Trim Junction Box
 View
  Email

[/vc_column_text][/vc_tta_section][/vc_tta_accordion][/vc_column][/vc_row][vc_row el_id="partes"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="PARTES"][/ultimate_heading][vc_accordion][vc_accordion_tab title=""][vc_column_text]

 Part # Product Description List Price  Cart
 21169  J-Box,ST EL304A 4 CHAN Expandable FRP NEMA 4X
 21301  Board,ST EL304A 4 CHAN
 165275  Enclosure,EL304A Only EL304A Junction Box Enclosure With Cord Grips Board Backplate and Cover
