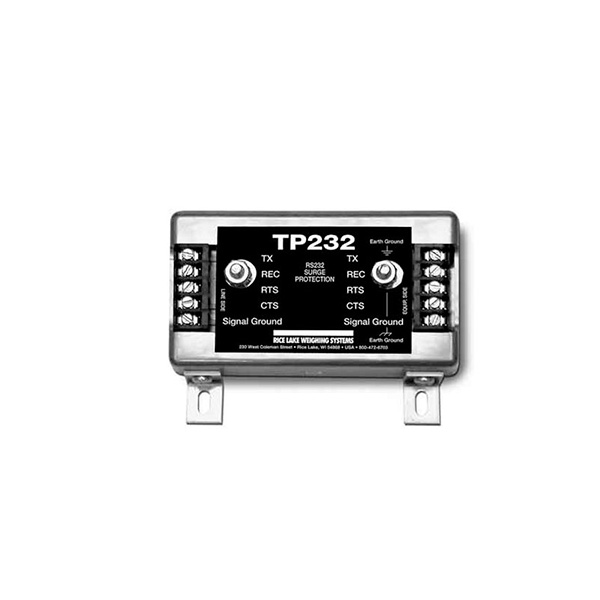

TP232 RS-232 Serial Surge Protector

TP232 RS-232 Serial Surge Protector

  • Two metal mounting brackets
  • Three stages of protection: Gas discharge tube, series resistor and transient voltage suppressor (TVS)
  • Two terminal posts for ground
  • RS-232 high energy surge protector
  • Terminal blocks for transmit, receive, request to send, clear to send and signal ground
  • Safe for use with computers and PLCs
Applications
  • Indicators
  • Remote displays
  • Printers
  • Computers
  • PLC
Categoría:

Descripción

[vc_row el_id="informacion"][vc_column][ultimate_heading margin_design_tab_text=""]The TP232 RS-232 high energy surge protector is safe to use with computers and PLCs. This device offers three stages of protection using different technologies for optimal surge protection.[/ultimate_heading][vc_tta_accordion active_section="1" collapsible_all="true"][vc_tta_section title="TP232 RS-232 Info Product Specifications" tab_id="1534538444606-3d1090d2-ff0a"][vc_row_inner][vc_column_inner width="1/3"][vc_column_text]Clamping Voltage (Stage One):
72 V DC minimum, 108 V DC maximum

Series Resistance (Stage Two):
2.7 Ohms

Clamping Voltage (Stage Three):
14.3 V minimum, 15.7 V maximum[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]Clamping Time:
Less than 5 x 10-9 seconds

Connectors:
Five position terminal blocks

Dimensions:
Approximately 4.5 L x 3.3 W x 1.8 in H (114.3 L x 83.8  W x 45.7 mm H)[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]Weight:
Approximately 0.42 lb (0.19 kg)

Approvals:
CE marked

Warranty:
One-year limited warranty[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_tta_section][/vc_tta_accordion][/vc_column][/vc_row][vc_row el_id="recursos"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="Recursos / Descargas"][/ultimate_heading][vc_tta_accordion active_section="1" collapsible_all="true"][vc_tta_section title="Specifications Page" tab_id="1521654929872-40541558-89ff"][vc_column_text]

TP232 RS-232 Serial Surge Protection
 View
  Email

[/vc_column_text][/vc_tta_section][vc_tta_section title="Manuales" tab_id="1521655180754-e9ee7f8d-3f84"][vc_column_text]

TP232 RS232 Surge Protector Installation Guide -- B  View  Email

[/vc_column_text][/vc_tta_section][/vc_tta_accordion][/vc_column][/vc_row][vc_row el_id="partes"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="PARTES"][/ultimate_heading][vc_accordion][vc_accordion_tab title=""][vc_column_text]

89889 Board,8 Channel ST Signal Trim And Section Trim w/Expansion
Add to Quote
91782 J-Box,JB8SP 8 Channel Signal Trim with Expansion, FRP Nema 4
Add to Quote
165273 Enclosure,JB8SP/SPT Only JB8SP/SPT Junction Box Enclosure W/O Cord Grips and filter. Incl Back plate, cover and gasket.

[/vc_column_text][/vc_accordion_tab][/vc_accordion][/vc_column][/vc_row][vc_row el_id="opciones"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="OPCIONES"][/ultimate_heading][vc_accordion][vc_accordion_tab title=""][vc_column_text]

92734 Assembly,Coupling & Cap Bonded, 1/2 in NPT Grip Cap To 92574 Coupling
Add to Quote
92735 Assembly, Coupling & Cap bonded, 3/8in NPT cap to coupling 92575

[/vc_column_text][/vc_accordion_tab][/vc_accordion][/vc_column][/vc_row][vc_row el_id="repuestos"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="PIEZAS DE REPUESTOS"][/ultimate_heading][vc_accordion][vc_accordion_tab title=""][vc_column_text]Las piezas de repuesto solo se pueden comprar a través de distribuidores capacitados y autorizados.

Para localizar un distribuidor en su área, llámenos al 997-59665  o complete una solicitud en línea.[/vc_column_text][/vc_accordion_tab][/vc_accordion][/vc_column][/vc_row]
