[vc_row el_id="informacion"][vc_column][ultimate_heading main_heading="Reliable and Cost-Effective"]With the 120 digital weight indicator, there is no need to sacrifice quality for price. This digital weight indicator is designed to be a reliable, cost-effective solution for material handling or shipping and receiving applications. The 120 drives up to four 350Ω load cells while three-stage digital filtering provides stable, accurate weight data. The 120’s five-button tactile front panel and easy-to-read LED display help to make scale operations effortless. Two independent communication ports provide full EDP and print ticket programmability.[/ultimate_heading][vc_tta_accordion active_section="1" collapsible_all="true"][vc_tta_section title="EL204 Signal Trim Junction Box Specifications" tab_id="1521654435692-d6b73376-e0b1"][vc_row_inner][vc_column_inner width="1/3"][vc_column_text]
Cable Fittings:
Five water tight nylon compression fittings, 0.210-0.280 in (5.3 x 7.1 mm)
Connectors:
Spring clamp screwless, 12-28 AWG
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]
Trimming:
Individual cell trim, signal trim
Potentiometers:
100,000 ohm, 25 turn cermet
Enclosure:
ABS with molded through-fittings, sealed 6-screw lid
[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]
Circuit Board:
3.8 x 2.3 in (96.5 x 58.4 mm); with conformal coating
Warranty:
One-year limited warranty

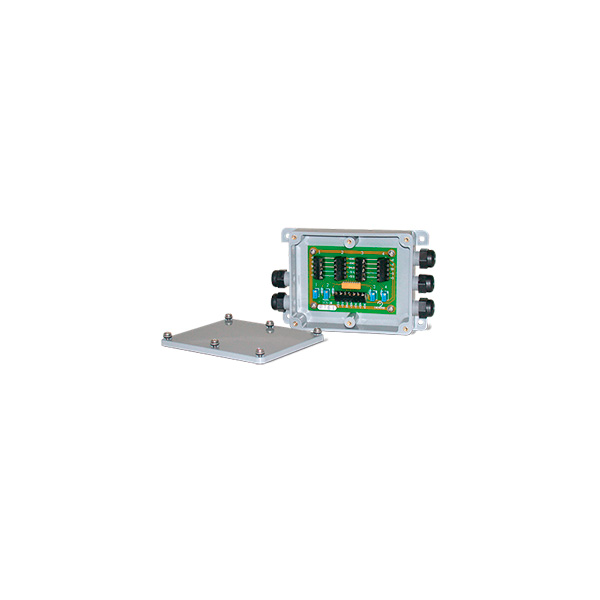

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_tta_section][vc_tta_section title="EL204 Signal Trim Junction Box Dimensions" tab_id="1521654435774-9820b471-daa7"][vc_single_image image="2365" img_size="full" label=""][vc_column_text]
| Dimensions | |||
|---|---|---|---|
| A | 7.32 in (183 mm) | D | 1.65 in (42 mm) |
| B | 6.06 in (154 mm) | E | 4.76 in (121 mm) |
| C | 3.74 in (95 mm) | ||
[/vc_column_text][/vc_tta_section][/vc_tta_accordion][/vc_column][/vc_row][vc_row el_id="recursos"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="Recursos / Descargas"][/ultimate_heading][vc_tta_accordion active_section="1" collapsible_all="true"][vc_tta_section title="Specifications Page" tab_id="1521654929872-40541558-89ff"][vc_column_text]
| TITLE | VIEW | ACTION |
|---|---|---|
| EL204 Signal Trim Junction Box |
[/vc_column_text][/vc_tta_section][/vc_tta_accordion][/vc_column][/vc_row][vc_row el_id="partes"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="PARTES"][/ultimate_heading][vc_accordion][vc_accordion_tab title=""][vc_column_text]
| Part # | Product Description | List Price | Cart |
|---|---|---|---|
| 73428 | J-Box,EL204 ABS Signal Trim | ||
| 88958 | Board,4 Channel ST Signal Trim w/Expansion |
