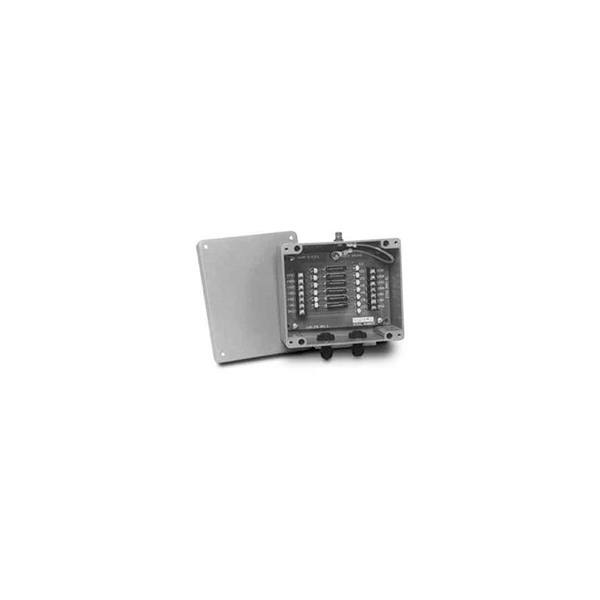

UJB3T6 DC Transient Protector

UJB3T6 DC Transient Protector

  • Factory serviceable
  • Full six-wire with shield protection
  • #6 SEMS screw type; accepts spade lugs, tinned leads or bare wires up to #12 AWG
  • Up to eight parallel or summed load cells
  • 50K baud maximum transmission frequency
  • Up to six serial data lines can be protected instead of load cells
Applications
  • Protects load cells from voltage transients
  • Compatible with signals down to 1 uV grad
  • Installations exposed to significant transients
  • Protects serial communication lines
Categoría:

Descripción

[vc_row el_id="informacion"][vc_column][ultimate_heading]The factory-serviceable UJB3T6 DC Transient Protector can protect up to six data lines or eight load cells. The fiberglass reinforced polyester enclosure can withstand up to 40 psi in washdown applications.[/ultimate_heading][vc_tta_accordion active_section="1" collapsible_all="true"][vc_tta_section title="UJB3T6 DC Specifications" tab_id="1534538444606-3d1090d2-ff0a"][vc_row_inner][vc_column_inner width="1/3"][vc_column_text]Protection Type:
6-channel series type with separate shield

Maximum Excitation Voltage:
20 V DC or 20 V AC

Clamping Voltage:
75 V DC or 75 V AC

Clamping Time:
75 V DC Stages <100 nanoseconds typical

Peak Surge Currents:
75 V DC Stage-5000 amperes[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]Maximum Serial Transmission Rate:
50 k baud

Series resistance:
0.219 ohms typical

Series inductance:
110 µh typical

Grounding:
20 ft (6.1 m) insulated # 10 AWG wire

Cable Fitting:
(2) nylon strain relief for 0.079-0.236 in (2.0-6.0 mm) diameter cable[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]Enclosure:
Fiberglass-Reinforced Polyester (FRP) NEMA 4X, maximum 40 psi washdown

Operating Temperature:
14°F to 104°F (-10°C to 40°C)

Circuit Board:
6.75 x 4.75 in (171.5 x 120.7 mm) with anti-fungal coating

Dimensions:
7.63 W x 6.63 H x 3.25 in D (193.8 W x 168.3 H x 82.6 mm D)[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_tta_section][vc_tta_section title="UJB3T6 DC Transient Protector Dimensions" tab_id="1521654435692-d6b73376-e0b1"][vc_single_image image="3538" img_size="large" alignment="center" label=""][/vc_tta_section][/vc_tta_accordion][/vc_column][/vc_row][vc_row el_id="recursos"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="Recursos / Descargas"][/ultimate_heading][vc_tta_accordion active_section="1" collapsible_all="true"][vc_tta_section title="Specifications Page" tab_id="1521654929872-40541558-89ff"][vc_column_text]

UJB3T6 DC Transient Protection
 View
  Email

[/vc_column_text][/vc_tta_section][vc_tta_section title="Manuales" tab_id="1521655180754-e9ee7f8d-3f84"][vc_column_text]

JB8SP/JB8SPT TuffSeal Installation Manual -- B  View  Email

[/vc_column_text][/vc_tta_section][/vc_tta_accordion][/vc_column][/vc_row][vc_row el_id="partes"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="PARTES"][/ultimate_heading][vc_accordion][vc_accordion_tab title=""][vc_column_text]

21134 Transient Protection, UJB-3T6 Load Cell Protection

[/vc_column_text][/vc_accordion_tab][/vc_accordion][/vc_column][/vc_row][vc_row el_id="opciones"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="OPCIONES"][/ultimate_heading][vc_accordion][vc_accordion_tab title=""][vc_column_text]

21135 Board,UJB-3T6 Board Only

[/vc_column_text][/vc_accordion_tab][/vc_accordion][/vc_column][/vc_row][vc_row el_id="repuestos"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="PIEZAS DE REPUESTOS"][/ultimate_heading][vc_accordion][vc_accordion_tab title=""][vc_column_text]Las piezas de repuesto solo se pueden comprar a través de distribuidores capacitados y autorizados.

Para localizar un distribuidor en su área, llámenos al 997-59665  o complete una solicitud en línea.[/vc_column_text][/vc_accordion_tab][/vc_accordion][/vc_column][/vc_row]
