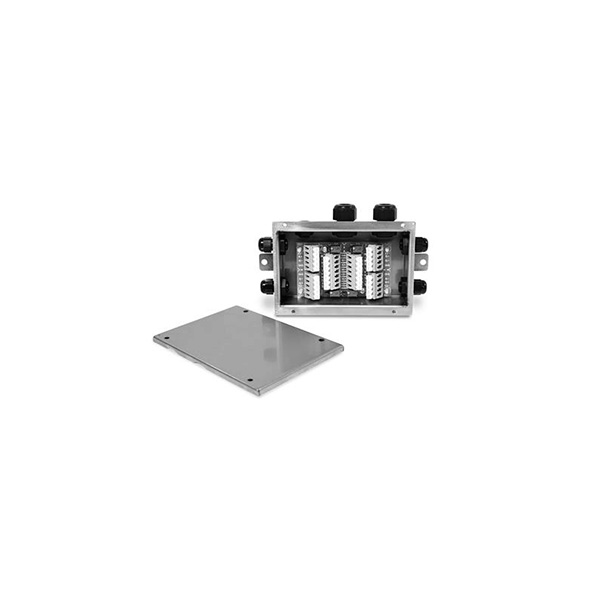

JB4ES TuffSeal™ Excitation Trim Junction Box

JB4ES TuffSeal™ Excitation Trim Junction Box

  • Stainless steel, NEMA Type 4X enclosure
  • Jumpers to enable trimming
  • PreVent™ breather vent
  • Conformal coated circuit board
  • Number of cells: 2, 3 or 4 single cells
  • Expansion port
Applications
  • Floor, tank, hopper scales
Categoría:

Descripción

[vc_row el_id="informacion"][vc_column][ultimate_heading]The JB4ES TuffSeal™ excitation trim junction box sums two or four single load cell inputs with the potential to expand and connect other junction boxes. The stainless steel NEMA Type 4X enclosure is optimal protection against harsh environments and abrasive materials. The JB4ES TuffSeal excitation trim junction box is ideal for use in tank and hopper scale applications.[/ultimate_heading][vc_tta_accordion active_section="1" collapsible_all="true"][vc_tta_section title="JB4EP & JB4EPT TuffSeal Excitation Trim Junction Box Dimensions" tab_id="1521654435692-d6b73376-e0b1"][vc_single_image image="3514" img_size="large" alignment="center"][/vc_tta_section][vc_tta_section title="JB4ES Tuffseal Excitation Trim Junction Box Specifications" tab_id="1521654435774-9820b471-daa7"][vc_row_inner][vc_column_inner width="1/3"][vc_column_text]Cable Fittings:
(4) PG7 0.118-0.255 strain relief
(2) PG11 0.197-0.394 strain relief
(1) PreVent™ breather vent

Enclosure:
Stainless steel NEMA Type 4X[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]Connectors:
Spring clamp screwless, 12-28 AWG

Trimming:
Individual cell, excitation trim

Potentiometers:
100,000 ohms, 25 turn cermet[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]Circuit Board:
3.8 in x 2.3 in (96.5 mm x 58.4 mm), with conformal coating

Warranty:
One-year limited warranty[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_tta_section][vc_tta_section title="Replacement Junction Boxes, Boards or Components Table" tab_id="1534538444606-3d1090d2-ff0a"][vc_column_text]

Model Complete J-Box Replacement Replacement Board Only Replacement Cord Grips Replacement Pressure & Condensation Vent Desiccant Packs
JB4SS 88956 88958 58983 59001 88733 PreVent™ breather (vent) 88734 (vent nut) 92240
JB4ES 91779 89446 58983 59001 88733 PreVentbreather (vent) 88734 (vent nut) $1.05 92240
JB4SP JB4SPT 91780 92762 88958 (load cell) and
89894 (transient protection)		 58983 59001 88733 PreVent breather (vent) 88734 (vent nut) 16039
JB4EP JB4EPT 91781 92763 89446 (load cell) and
89894 (transient protection)		 58983 59001 88733 PreVent breather (vent) 88734 (vent nut) 16039
EL204 73428 88958 N/A N/A N/A
JB8SP 91782 **89889 15655 (cord grip) and 15656 (nut)=3/8" NPT 15628 (cord grip) and
15630 (nut)=1/2" NPT		 88733 PreVent breather (vent) 88734 (vent nut) 16039
JB8SPT 91783 89889 (load cell) and 89894 (transient protection) 15655 (cord grip) and 15656 (nut)=3/8" NPT 15628 (cord grip) and
15630 (nut)=1/2" NPT		 88733 PreVent breather (vent) 88734 (vent nut) 16039
EL304A 21169 21301 N/A N/A N/A
JB1010 36231 36351 N/A N/A N/A
JB1010ST 68813 68811 N/A N/A N/A
EL210 91781, JB4EP* 92472 58983 59001 N/A N/A
EL211A 91780, JB4SP (However the board does not have section trim capabilities)* 92473 (However the board does not have section trim capabilities) 58983 59001 N/A N/A
EL604-AL 88956, JB4SS* 88958 58983 59001 N/A N/A
EL604STA 88956, JB4SS* 88958 58983 59001 N/A N/A
EL604ETA 91779, JB4ES* 89446 58983 59001 N/A N/A
EL504 21165 21296 N/A N/A N/A
JB808S 91782, JB8SP* 92471 15655 (cord grip) and
15656 (nut)=3/8" NPT 15628 (cord grip) and 15630 (nut)=1/2" NPT		 N/A N/A
JB818ST 91783, JB8SPT* Need (1) 77445 (1) 89889 and (1) 89894 15655 (cord grip) and
15656 (nut)=3/8" NPT 15628 (cord grip) and 15630 (nut)=1/2" NPT		 N/A N/A

[/vc_column_text][/vc_tta_section][/vc_tta_accordion][/vc_column][/vc_row][vc_row el_id="recursos"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="Recursos / Descargas"][/ultimate_heading][vc_tta_accordion active_section="1" collapsible_all="true"][vc_tta_section title="Specifications Page" tab_id="1521654929872-40541558-89ff"][vc_column_text]

JB4EP and JB4EPT TuffSeal Excitation Trim Junction Box
 View
  Email

[/vc_column_text][/vc_tta_section][vc_tta_section title="Manuales" tab_id="1521655180754-e9ee7f8d-3f84"][vc_column_text]

JB4ES/JB4SS/JB4EP/JB4SP TuffSeal Installation Guide -- --  View  Email
4 Channel Board – FM Approved Installation Manual -- C  View  Email

[/vc_column_text][/vc_tta_section][vc_tta_section title="Articles" tab_id="1534603658829-c9fe0975-4191"][vc_column_text]

Let Your Enclosures Breathe Easy View Article  Email

[/vc_column_text][/vc_tta_section][/vc_tta_accordion][/vc_column][/vc_row][vc_row el_id="partes"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="PARTES"][/ultimate_heading][vc_accordion][vc_accordion_tab title=""][vc_column_text]

91779 J-Box,JB4ES 4 Channel Excitation Trim with Expansion, Stainless Steel Nema 4X FM Approved

[/vc_column_text][/vc_accordion_tab][vc_accordion_tab title="Boards"][vc_column_text]

89446 Board,4 Channel ET Excitation Trim w/Expansion

[/vc_column_text][/vc_accordion_tab][vc_accordion_tab title="Hardware"][vc_column_text]

165271 Enclosure,JB4SS/ES Only JB4SS/ES Junction Box Enclosure W/Cord Grips & Filter. Includes Cover and Gasket.
