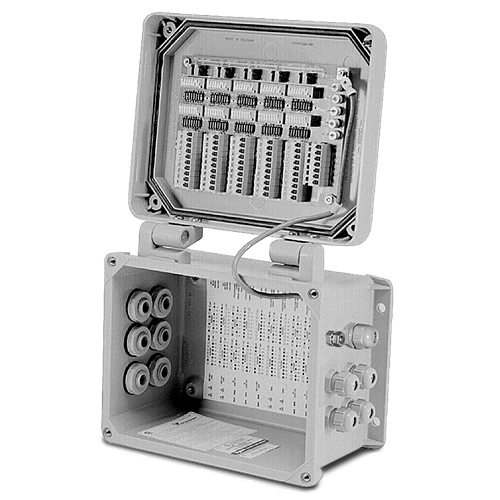

When trimming junction boxes for paralleling load cells, the JB1010 provides signal or excitation trim capabilities. Whether expanding an existing scale or replacing a junction box on a truck or floor scale, the JB1010 provides easy access for trimming up to ten load cells per unit or conveniently adjust multiple cell modules by section.
[/ultimate_heading][vc_tta_accordion active_section="1" collapsible_all="true"][vc_tta_section title="JB1010 Signal/Excitation Trim Junction Box with Transient Protection Dimensions" tab_id="1521654435692-d6b73376-e0b1"][vc_single_image image="3506"][/vc_tta_section][vc_tta_section title="JB1010 Signal/Excitation Trim Junction Box with Transient Protection Specifications" tab_id="1521654435774-9820b471-daa7"][vc_row_inner][vc_column_inner width="1/3"][vc_column_text]Mounting Centers:
3.75 in x 2.31 in (95.2 mm x 58.7 mm)
Cable Fittings:
Nylon waterproof strain-relief type[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]Cable Diameter:
0.079-0.314 in (2.0-8.0 mm)
Potentiometers:
100,000 ohms, 25 turns cerment
Trimming:
Individual cell and section signal and excitation trimming[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]Terminal Block:
Rated 300V/15A; 7-position screw terminal can each accommodate up to #16 AWG
Warranty:
One-year limited warranty[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_tta_section][vc_tta_section title="Replacement Junction Boxes, Boards or Components Table" tab_id="1534528849974-aed562b0-fe7d"][vc_column_text]
| Model | Complete J-Box Replacement | Replacement Board Only | Replacement Cord Grips | Replacement Pressure & Condensation Vent | Desiccant Packs |
|---|---|---|---|---|---|
| JB4SS | 88956 | 88958 | 58983 59001 | 88733 PreVent™ breather (vent) 88734 (vent nut) | 92240 |
| JB4ES | 91779 | 89446 | 58983 59001 | 88733 PreVentbreather (vent) 88734 (vent nut) $1.05 | 92240 |
| JB4SP JB4SPT | 91780 92762 | 88958 (load cell) and 89894 (transient protection) |
58983 59001 | 88733 PreVent breather (vent) 88734 (vent nut) | 16039 |
| JB4EP JB4EPT | 91781 92763 | 89446 (load cell) and 89894 (transient protection) |
58983 59001 | 88733 PreVent breather (vent) 88734 (vent nut) | 16039 |
| EL204 | 73428 | 88958 | N/A | N/A | N/A |
| JB8SP | 91782 | **89889 | 15655 (cord grip) and 15656 (nut)=3/8" NPT 15628 (cord grip) and 15630 (nut)=1/2" NPT |
88733 PreVent breather (vent) 88734 (vent nut) | 16039 |
| JB8SPT | 91783 | 89889 (load cell) and 89894 (transient protection) | 15655 (cord grip) and 15656 (nut)=3/8" NPT 15628 (cord grip) and 15630 (nut)=1/2" NPT |
88733 PreVent breather (vent) 88734 (vent nut) | 16039 |
| EL304A | 21169 | 21301 | N/A | N/A | N/A |
| JB1010 | 36231 | 36351 | N/A | N/A | N/A |
| JB1010ST | 68813 | 68811 | N/A | N/A | N/A |
| EL210 | 91781, JB4EP* | 92472 | 58983 59001 | N/A | N/A |
| EL211A | 91780, JB4SP (However the board does not have section trim capabilities)* | 92473 (However the board does not have section trim capabilities) | 58983 59001 | N/A | N/A |
| EL604-AL | 88956, JB4SS* | 88958 | 58983 59001 | N/A | N/A |
| EL604STA | 88956, JB4SS* | 88958 | 58983 59001 | N/A | N/A |
| EL604ETA | 91779, JB4ES* | 89446 | 58983 59001 | N/A | N/A |
| EL504 | 21165 | 21296 | N/A | N/A | N/A |
| JB808S | 91782, JB8SP* | 92471 | 15655 (cord grip) and 15656 (nut)=3/8" NPT 15628 (cord grip) and 15630 (nut)=1/2" NPT |
N/A | N/A |
| JB818ST | 91783, JB8SPT* | Need (1) 77445 (1) 89889 and (1) 89894 | 15655 (cord grip) and 15656 (nut)=3/8" NPT 15628 (cord grip) and 15630 (nut)=1/2" NPT |
N/A | N/A |
