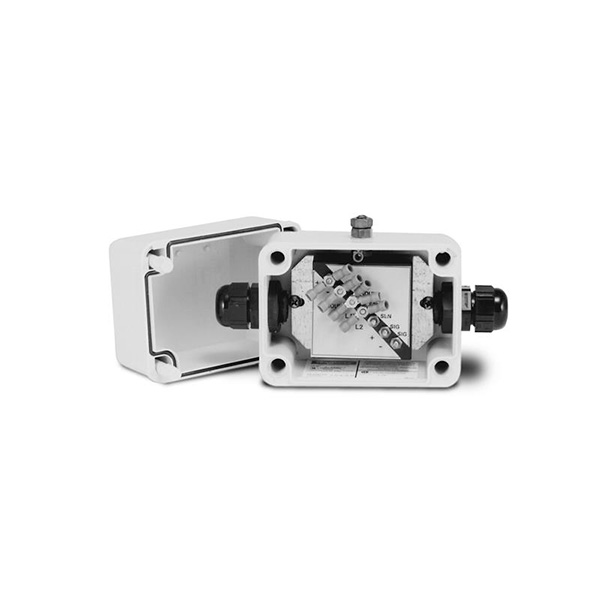

TP75 DC Transient Protector

Descripción

[vc_row el_id="informacion"][vc_column][ultimate_heading margin_design_tab_text=""]The TP75 DC load cell surge protector protects an unlimited number of parallel load cells and up to eight in a series. The NEMA Type 4X enclosure assures the sensitive board stays safe and dry during washdown.[/ultimate_heading][vc_tta_accordion active_section="1" collapsible_all="true"][vc_tta_section title="TP75 DC Transient Protection Specifications" tab_id="1534538444606-3d1090d2-ff0a"][vc_row_inner][vc_column_inner width="1/3"][vc_column_text]Protection Type:
Six-channel parallel type with separate shield

Maximum Excitation Voltage:
22.8 VDC

Response Time:
Five nanoseconds

Peak Surge Currents:
100 amps

Series Resistance:
0.0 ohms[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]Series Inductance:
0.0 µh

Grounding:
10 AWG wire or larger (not provided)

Cable Fitting:
(2) nylon strain relief for 0.187in-0.312in (4.7mm-7.9mm) diameter cable

Enclosure:
Impact-resistant polycarbonate NEMA Type 4X, maximum 40 psi washdown[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]Operating Temperature:
4°F to 121°F (-20°C to 85°C)

Circuit Board:
2.22 x 2.22 in (56.4 x 56.4 mm)

Dimensions:
W x H x D) 4.38 x 3.15 X 3.38 (111.1 x 80 x 85.9 mm)

Warranty:
One-year limited warranty[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_tta_section][vc_tta_section title="TP75 DC Transient Protection Dimensions" tab_id="1534571665522-190602af-5e5c"][vc_single_image image="3534" img_size="full" label=""][/vc_tta_section][/vc_tta_accordion][/vc_column][/vc_row][vc_row el_id="recursos"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="Recursos / Descargas"][/ultimate_heading][vc_tta_accordion active_section="1" collapsible_all="true"][vc_tta_section title="Specifications Page" tab_id="1521654929872-40541558-89ff"][vc_column_text]
