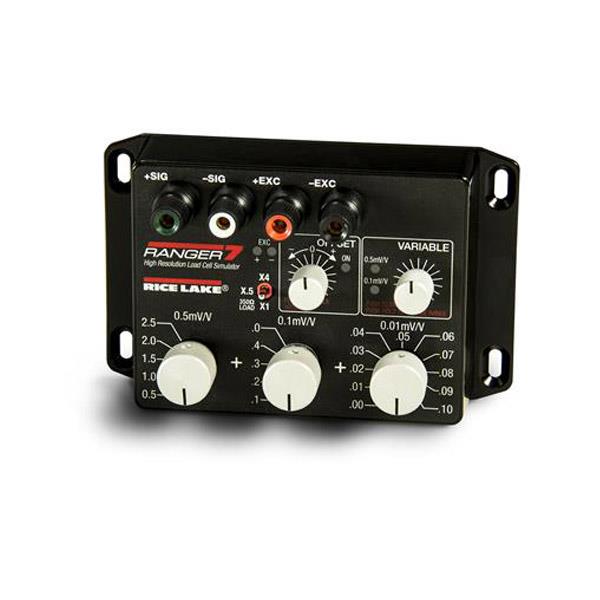

Ranger 7 Variable Range Simulator

Descripción

[vc_row el_id="informacion"][vc_column][ultimate_heading margin_design_tab_text=""]The Ranger 7 is the simulator of choice for precision testing. Designed for applications that require high resolutions, it features a switchable offset and two Vernier controls, along with switches that go down to 0.01 mV/V.[/ultimate_heading][vc_tta_accordion active_section="1" collapsible_all="true"][vc_tta_section title="Ranger 7 Variable Range Simulator Specifications" tab_id="1534538444606-3d1090d2-ff0a"][vc_row_inner][vc_column_inner width="1/3"][vc_column_text]Vernier:
Two ranges; one is equal to the sum of the 0.05 mV/V switch and the 0 mV/V-0.5 mV/V switch. The other is the sum of the 0.5 mV/V, 0.1 mV/V and 0.01 mV/V switches

Load Impedance:
Three settings: X0.5= 700 ohms, X1= 350 ohms (one standard load cell),
X4= 87.5 ohms (four load cell platform)[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]Linearity:
± 0.01% + 1µV

Connectors:
Low Thermal Electronics, Type 2758 precision gold plated binding posts Standard banana jacks or
14 AWG wire

Temperature Coefficient:
5 ppm/°C[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]Zero Offset:
± 0.0005 mV/V

Output Range:
0 mV/V-3 mV/V in 0.01 mV/V steps

LED Annunciators:
EXC +
EXC –
Offset ON
0.5 mV/V
0.1 mV/V[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_tta_section][/vc_tta_accordion][/vc_column][/vc_row][vc_row el_id="recursos"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="Recursos / Descargas"][/ultimate_heading][vc_tta_accordion active_section="1" collapsible_all="true"][vc_tta_section title="Specifications Page" tab_id="1521654929872-40541558-89ff"][vc_column_text]

[/vc_column_text][/vc_tta_section][vc_tta_section title="Manuales" tab_id="1521655180754-e9ee7f8d-3f84"][vc_column_text]

[/vc_column_text][/vc_tta_section][/vc_tta_accordion][/vc_column][/vc_row][vc_row el_id="partes"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="PARTES"][/ultimate_heading][vc_accordion][vc_accordion_tab title=""][vc_column_text]

[/vc_column_text][/vc_accordion_tab][/vc_accordion][/vc_column][/vc_row][vc_row el_id="opciones"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="OPCIONES"][/ultimate_heading][vc_accordion][vc_accordion_tab title=""][vc_column_text]

[/vc_column_text][/vc_accordion_tab][/vc_accordion][/vc_column][/vc_row][vc_row el_id="repuestos"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="PIEZAS DE REPUESTOS"][/ultimate_heading][vc_accordion][vc_accordion_tab title=""][vc_column_text]Las piezas de repuesto solo se pueden comprar a través de distribuidores capacitados y autorizados.

Para localizar un distribuidor en su área, llámenos al 997-59665  o complete una solicitud en línea.[/vc_column_text][/vc_accordion_tab][/vc_accordion][/vc_column][/vc_row]
