Descripción
[vc_row el_id="informacion"][vc_column][ultimate_heading]Ideal for use with truck, livestock and railroad scales, the JB8SP TuffSeal™ signal trim junction box effectively seals in sensitive circuitry and resists potentially damaging elements. Conjoining up to eight load cells in one unit, the JB8SP TuffSeal junction box also includes an expansion port if needed. For convenience, this junction box has both section and individual cell signal trim capability.[/ultimate_heading][vc_tta_accordion active_section="1" collapsible_all="true"][vc_tta_section title="Honeywell E-Class III Specifications" tab_id="1534538444606-3d1090d2-ff0a"][vc_row_inner][vc_column_inner width="1/3"][vc_column_text]Print Speed:
Basic: 4 inches per second
Advanced: 5 Inches per second (IPS) (127 mm/s)
Print Length Range:
0.375 to 99 in (9.5 to 2514 mm)
Print Width:
4.25 in maximum
Media Types:
Label Roll OD: Max 5.0 in
Core: 1 in
Fan-fold, die-cut or continuous labels, perforated or continuous tag/ticket stock
Width: 0.75 to 4.4 in
Thickness: 0.0025 to 0.01 in
Sensing: Basic-fixed position
Advanced: Positional adjustable sensors capable of gap between labels, black bar on back, and notch or hole sensing[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]Printer language:
DPL, PL-Z or PL-E emulation
Ribbon:
Coated side in or coated side out (CSI/CSO)
Width range 1.0-4.3 in (25 to 109 mm)
Core: 0.5-1.0 in (13 to 25 mm)
Resident Fonts:
10 alphanumeric fonts from 0.08 to 0.25 in including OCR-A, OCR-B, CG
Triumvirate smooth font from AGFA
Bar Codes:
Linear -Code 3 of 9, Code 93, Code 128), UCC/EAN-128, UPC E, EAN 8/13,
Interleaved 2 or 5,. Codabar, Post Net, HIBC, UPC 2 and 5 Addendums, Plessey and Telepen
2-D Symbologies:
MaxiCode, PDF417, Datamatrix, QR Code, USD-8, Aztec, TLC 39, Micro PDF417[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]Dimensions:
(W x L x H): 8.01 x 7.36 x 11.1 in
(203.5 x 187 x 282 mm)
Memory:
64MB Flash/16 MB DRAM
Interfaces:
Baud rate: up to 38,400 BPS
Standard: USB and RS-232 (DB-9)
Advanced model mini-parallel centronics also
Power:
Auto switching 100/240 VAC, 50/60 Hz, U.S. Power Cord
Environment:
Operation: 40° F to 95° F (4° C to 35° C)
Operating Temperature:
40° F to 95° F (4° C to 35° C)
Weight:
5.2 lb (2.4 kg)
Warranty:
One-year limited warranty[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_tta_section][/vc_tta_accordion][/vc_column][/vc_row][vc_row el_id="recursos"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="Recursos / Descargas"][/ultimate_heading][vc_tta_accordion active_section="1" collapsible_all="true"][vc_tta_section title="Specifications Page" tab_id="1521654929872-40541558-89ff"][vc_column_text]
| TITLE | VIEW | ACTION |
|---|---|---|

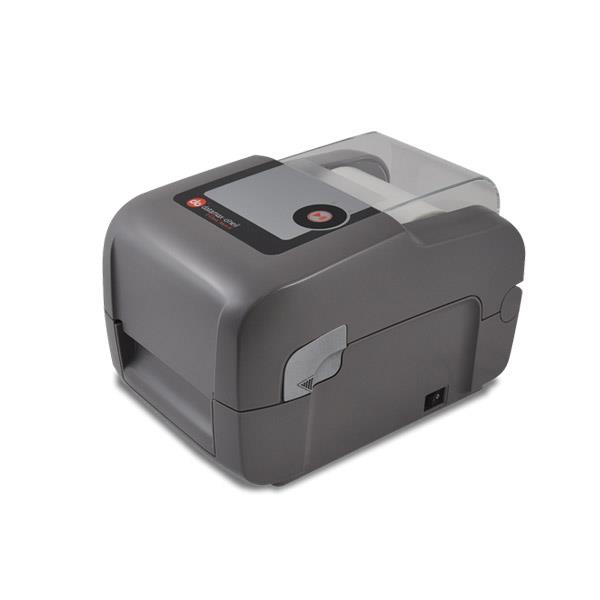

| Honeywell E-Class III |
[/vc_column_text][/vc_tta_section][vc_tta_section title="Sales Literature" tab_id="1534951707122-68a9f4a0-5b30"][vc_column_text]
| TITLE | CUSTOMIZE | VIEW | REQUEST | |
|---|---|---|---|---|
| Honeywell E-Class Mark III | View |
Download Only
|
[/vc_column_text][/vc_tta_section][vc_tta_section title="Manuales" tab_id="1521655180754-e9ee7f8d-3f84"][vc_column_text]
| TITLE | VERSION | REVISION | VIEW | |
|---|---|---|---|---|
| Honeywell Programming Language and Storage | -- | B | View |
[/vc_column_text][/vc_tta_section][vc_tta_section title="Questionnaire" tab_id="1534951997567-01a982ed-d2df"][vc_column_text]
| TITLE | VIEW | ACTION |
|---|---|---|
| Custom Label Format Form | ||
| Custom Label Quote Request Form, Rev 3 |
[/vc_column_text][/vc_tta_section][/vc_tta_accordion][/vc_column][/vc_row][vc_row el_id="partes"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="PARTES"][/ultimate_heading][vc_accordion][vc_accordion_tab title=""][vc_column_text]
| PART # | PRODUCT DESCRIPTION | LIST PRICE | CART |
|---|---|---|---|
| 121120 | Printer,Label E-4205A Mark III, Datamax Advanced Direct Thermal, 203 dpi, Tear Bar, DPL, PL-Z or PL-E Emulation, 64MB Flash, 110/240 V, US Power Cord |
|
Add to Quote
|
| 121122 | Printer,Label E-4205A Mark III, Datamax Advanced Direct Thermal, 203 dpi, Peel and Present, DPL, PL-Z or PL-E Emulation, 64MB Flash, 110/240 V, US Power Cord |
|
Add to Quote
|
| 121121 | Printer,Label E-4205A Mark III, Datamax Advanced Thermal Transfer, 203 dpi, Peel and Present, DPL, PL-Z or PL-E Emulation, 64MB Flash, 110/240 V, US Power Cord |
|
[/vc_column_text][/vc_accordion_tab][vc_accordion_tab title="Basic Model"][vc_column_text]
| PART # | PRODUCT DESCRIPTION | LIST PRICE | CART |
|---|---|---|---|
| 121119 | Printer,Label E-4204B Mark III, Datamax Direct Thermal, 203 dpi, Tear Bar, DPL, PL-Z, or PL-E Emulation, 64MB Flash, 110/240 V, US Power Cord |
[/vc_column_text][/vc_accordion_tab][/vc_accordion][/vc_column][/vc_row][vc_row el_id="opciones"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="OPCIONES"][/ultimate_heading][vc_accordion][vc_accordion_tab title=""][vc_column_text]
| PART # | PRODUCT DESCRIPTION | LIST PRICE | CART |
|---|---|---|---|
| 126769 | Printer OPT,Present Sensor & label peeler, E-Class Mark III, OPT78-2836-01 |
|
Add to Quote
|
| 64794 | Cable,Null Modem DB9F/M DB9F To DB9M, 6 feet |
|
Add to Quote
|
| 79074 | Cable,USB 6ft USB-A(male) to USB-B(male) |
|
Add to Quote
|
| 41276 | Cable,DB9M To Blunt End PINOUT: Black Pin-5, Red Pin-3, Green Pin-2 |
|
Add to Quote
|
| 68517 | Rewinder,Label DMXREW1 Label Rewinder/Unwinder |
|
Add to Quote
|
| 112517 | Printhead,E-4205e 203dpi PHD20-2267-01 |
|
Add to Quote
|
| 38941 | Pen,Head Cleaning Box of 12 TLP2642,LP2242,LP2642,TLP3642,LP3642,TLP2046,TLP2242 TLP2044 Eltron |
|
Add to Quote
|
| 64792 | Printer OPT,Present Sensor Kit E-4203, E-4205e |
|
Add to Quote
|
| 64791 | Printer OPT,TT Upgrade Kit E-4203, E-4205e |
|
Add to Quote
|
| 112437 | Printer,OPT Cutter Grey Light-Duty (5mil), E-4205e |
|
Add to Quote
|
| 72473 | Printhead,E-Class 203 dpi E-4203, E-4204, E-4205e and Ex2 |
|
Add to Quote
|
| 97370 | Software,Labelview Pro for Windows with Keyless Activation |
|
[/vc_column_text][/vc_accordion_tab][vc_accordion_tab title="Label Stock/Ribbon (W x L)"][vc_column_text]
| PART # | PRODUCT DESCRIPTION | LIST PRICE | CART |
|---|---|---|---|
| 40332 | Label,Roll DTL 2.25x2.00 5" Dia 1 in Core 1445 Per Roll Perfed Wound Out High Grade Top Coated -10 Degree + Application Temperature |
|
Add to Quote
|
| 53251 | Label,Roll DTL 4.0x3.0 5 in OD 1 in Core 930 per Roll Perfed Wound Out High Grade Top Coated -10 Degree + Application Temperature. |
|
Add to Quote
|
| 40331 | Label,Roll DTL 4.00x4.00 5" Dia 1 in Core 745 Per Roll Perfed Wound Out High Grade Top Coated -10 Degree + Application Temperature |
|
Add to Quote
|
| 37345 | Label,Roll DTL 4.00x6.00 5" Dia 1 in Core 450 - 475 Per Roll Perfed Wound Out, Top Coated -10 Degree + Application Temperature |
|
Add to Quote
|
| 53261 | Label,Roll TTL 4.0x3.0 5 in DIA 1 in Core 930 per Roll Thermal Transfer Perfed Wound Out |
|
Add to Quote
|
| 35477 | Ribbon,Thermal Transfer GPR+ Wax 3.50 Wide x 360ft Black 1/2 inch Core |
|
Add to Quote
|
| 35478 | Ribbon,Thermal Transfer GPR+ Wax 4.33 Wide x 360ft Black 1/2 inch Core |
|
[/vc_column_text][/vc_accordion_tab][/vc_accordion][/vc_column][/vc_row][vc_row el_id="repuestos"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="PIEZAS DE REPUESTOS"][/ultimate_heading][vc_accordion][vc_accordion_tab title="Label Stock/Ribbon (W x L)"][vc_column_text]Las piezas de repuesto solo se pueden comprar a través de distribuidores capacitados y autorizados.
Para localizar un distribuidor en su área, llámenos al 997-59665 o complete una solicitud en línea.[/vc_column_text][/vc_accordion_tab][/vc_accordion][/vc_column][/vc_row]
