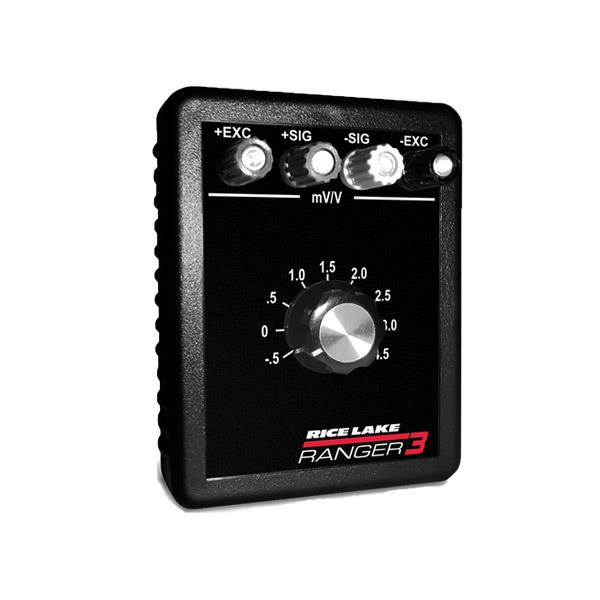

[vc_row el_id="informacion"][vc_column][ultimate_heading margin_design_tab_text=""]The Ranger 3 variable range simulator is well suited for calibration needs, offering nine fixed intervals from -5 mV/V to +4.5 mV/V.[/ultimate_heading][vc_tta_accordion active_section="1" collapsible_all="true"][vc_tta_section title="Ranger 3 Variable Range Simulator Specifications" tab_id="1534538444606-3d1090d2-ff0a"][vc_row_inner][vc_column_inner width="1/3"][vc_column_text]Range:
-0.5 mV/V-4.5 mV/V range
Impedance:
350 ohms nominal[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]Nonlinearity:
Less than 0.02%
Connectors:
Binding posts-suitable for banana plug or
14 gauge wire[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]Temperature Coefficient:
±5 ppm/ °C
Dimensions:
(W x L x H) 4.5 in x 3.5 in x 1.25 in (114.3 mm x 88.9 mm x 31.8 mm)
Warranty:
One-year limited warranty[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_tta_section][/vc_tta_accordion][/vc_column][/vc_row][vc_row el_id="recursos"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="Recursos / Descargas"][/ultimate_heading][vc_tta_accordion active_section="1" collapsible_all="true"][vc_tta_section title="Specifications Page" tab_id="1521654929872-40541558-89ff"][vc_column_text]
| TITLE | VIEW | ACTION |
|---|---|---|
| Ranger 1 | ||
| Ranger 3 |
[/vc_column_text][/vc_tta_section][vc_tta_section title="Manuales" tab_id="1521655180754-e9ee7f8d-3f84"][vc_column_text]
| TITLE | VERSION | REVISION | VIEW | |
|---|---|---|---|---|
| Ranger Series Load Cell Simulators Operation Manual Rev A | -- | B | View |
[/vc_column_text][/vc_tta_section][/vc_tta_accordion][/vc_column][/vc_row][vc_row el_id="partes"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="PARTES"][/ultimate_heading][vc_accordion][vc_accordion_tab title=""][vc_column_text]
| PART # | PRODUCT DESCRIPTION | LIST PRICE | CART |
|---|---|---|---|
| 68030 | Simulator,Ranger 3 Selectable .5 MV Steps |
|
[/vc_column_text][/vc_accordion_tab][/vc_accordion][/vc_column][/vc_row][vc_row el_id="opciones"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="OPCIONES"][/ultimate_heading][vc_accordion][vc_accordion_tab title=""][vc_column_text]
| PART # | PRODUCT DESCRIPTION | LIST PRICE | CART |
|---|---|---|---|
| 21116 | Cable,Interface Simulator I 3 |
|
[/vc_column_text][/vc_accordion_tab][/vc_accordion][/vc_column][/vc_row][vc_row el_id="repuestos"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="PIEZAS DE REPUESTOS"][/ultimate_heading][vc_accordion][vc_accordion_tab title=""][vc_column_text]Las piezas de repuesto solo se pueden comprar a través de distribuidores capacitados y autorizados.
Para localizar un distribuidor en su área, llámenos al 997-59665 o complete una solicitud en línea.[/vc_column_text][/vc_accordion_tab][/vc_accordion][/vc_column][/vc_row]
