Descripción
The TP75 DC load cell surge protector protects an unlimited number of parallel load cells and up to eight in a series. The NEMA Type 4X enclosure assures the sensitive board stays safe and dry during washdown.
TP75 DC Transient Protection Specifications
Protection Type:
Six-channel parallel type with separate shield
Six-channel parallel type with separate shield
Maximum Excitation Voltage:
22.8 VDC
Response Time:
Five nanoseconds
Peak Surge Currents:
100 amps
Series Resistance:
0.0 ohms
Series Inductance:
0.0 µh
0.0 µh
Grounding:
10 AWG wire or larger (not provided)
Cable Fitting:
(2) nylon strain relief for 0.187in-0.312in (4.7mm-7.9mm) diameter cable
Enclosure:
Impact-resistant polycarbonate NEMA Type 4X, maximum 40 psi washdown
Operating Temperature:
4°F to 121°F (-20°C to 85°C)
4°F to 121°F (-20°C to 85°C)
Circuit Board:
2.22 x 2.22 in (56.4 x 56.4 mm)
Dimensions:
W x H x D) 4.38 x 3.15 X 3.38 (111.1 x 80 x 85.9 mm)
Warranty:
One-year limited warranty

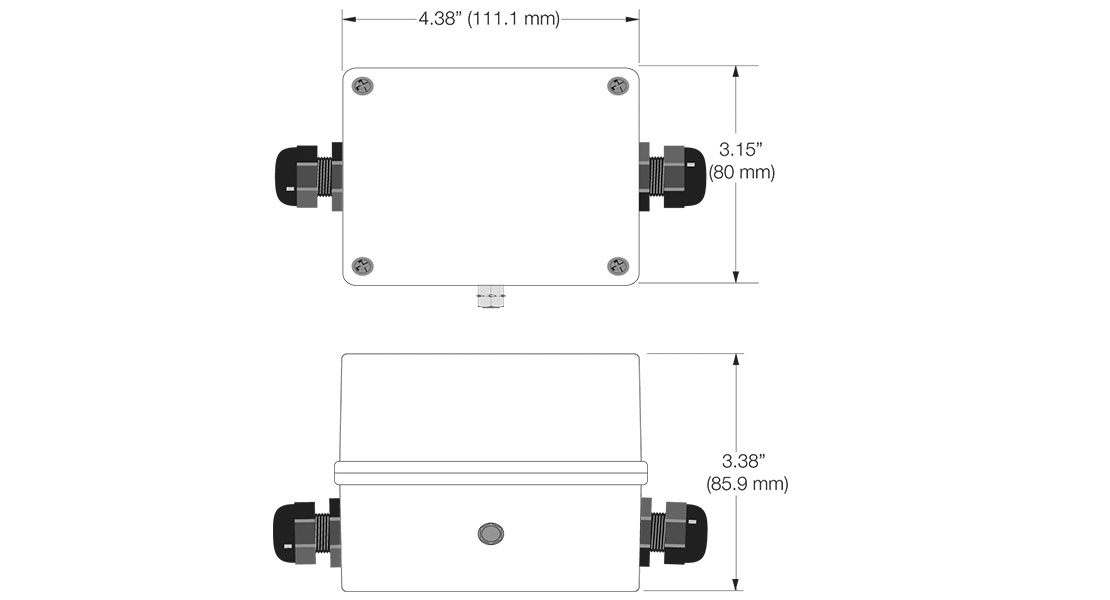

TP75 DC Transient Protection Dimensions
PARTES
Sección 1
| PART # | PRODUCT DESCRIPTION | LIST PRICE | CART |
|---|---|---|---|
| 33185 | Transient Protection Kit, Model TP-75 Load Cell Protector And Mounting Hardware |
|
OPCIONES
Sección 1
| PART # | PRODUCT DESCRIPTION | LIST PRICE | CART |
|---|---|---|---|
| 31164 | Transient Protection TP-75RL Load Cell Protection Board |
|
PIEZAS DE REPUESTOS
Sección 1
Las piezas de repuesto solo se pueden comprar a través de distribuidores capacitados y autorizados.
Para localizar un distribuidor en su área, llámenos al 997-59665 o complete una solicitud en línea.
