VIRTUi2® PC-based HMI for iQUBE²

VIRTUi2® PC-based HMI for iQUBE²

  • Web browser-based iQUBE2® cell status
  • Up to four scale systems and one total scale
  • Virtual front panel consists of display and five button keypad
  • Up to four digital I/O (provided by iQUBE2)
  • Primary/secondary units configuration (lb, kg, short tons, metric tons, none)
  • RS-232 communications at up to 460 Kbps
  • Electronic Data Processing (EDP) port over RS-232 and TCP/IP
  • Printer port for output-only, simplex communications
  • Two print formats
  • Provides for iQUBE2 configuration
  • Supports iQUBE2 diagnostics with configurable error reporting
  • Peak weight history
  • Recalibration notification
  • Provides local and remote reporting of diagnostics and error conditions
  • Concentrated load capacity (CLC)
  • Section capacity
Categoría:

Descripción

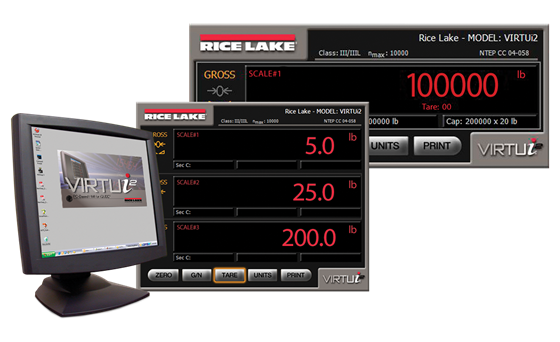

The PC-Based HMI for iQUBE2©

VIRTUi2 is the second generation of virtual indicators, providing the functionality of a basic weight indicator and placing it right on your computer screen. This PC-based solution is NTEP Certified and enables users to monitor cell diagnostics, set next calibration alerts, send email alerts, configure gross/net print formats as well as remotely view load cell status via a web browser when used with iQUBE2.
