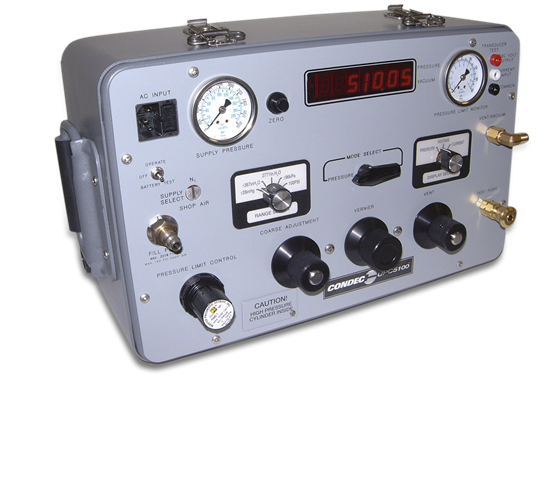

UPC5100/UPC5110 Pressure Vacuum Calibration Standard

UPC5100/UPC5110 Pressure Vacuum Calibration Standard

  • Available in self-contained enclosure with carrying handles (UPC5100) or 19 inch wide rack-mountable version (UPC5110)
  • Five independent selectable ranges in each instrument ±0-28 inHg, ±0-387 inH2O, 0-2771 inH2O, ±0-96 kPa, 0-100 psi
  • Available with Light Emitting Diode (LED) or Liquid Crystal Display (LCD)
  • Pressure/vacuum display resolution 0.02% F.S. typical for each range
  • ±0.05% F.S. accuracy for each range
  • State-of-the-art push button calibration—no analog potentiometers or adjustments required
  • Different technicians can calibrate the same Device-Under-Test and get identical results
  • Easy to operate, training can be accomplished in 10 minutes
  • Lightweight - less than 35 pounds
  • Adjustable overpressure protection
  • Precision vernier control
  • Self-contained nitrogen cylinder and vacuum converter provides 27 inHg (w/out external pump) to 100 psi
  • Voltage/current display mode for transducer testing
  • Quick-disconnect fitting and hose included
  • Pneumatic only; no hydraulic fluid or distilled water messes
  • Calibration certificate included; traceable to the National Institute of Standards and Technology (NIST)
Categoría:

Descripción

Designed for quick, convenient and accurate performance, the UPC5100 pressure calibration standard takes portability to a new level.

By incorporating self-contained pressure and vacuum sources, the UPC5100 eliminates the hassle and mess of hauling around extra hoses and pumps. Everything required for immediate operation is right at your fingertips. Weighing less than 35 pounds, the UPC5100 is easily transported for on-the-go operation.

Each UPC5100 is equipped with five switch-selectable measurement ranges for vacuum and low-pressure applications from 27 inches Hg vacuum to 100 psi. The patented precision Orion 2D vernier control allows the operator to rapidly secure the most accurate pressure value possible. Increased protection is provided by a self-relieving regulator that eliminates costly repairs due to inadvertent pressure overshooting. The UPC5100 is easy to operate and training can be accomplished in as little as 10 minutes. Different technicians can calibrate the same transmitter and get identical results...every time.

From aerospace, to health care, to general industry, the portable UPC5100 or 19 inch rack-mount UPC5110 provides everything you need for fast, accurate calibration regardless of where the job takes you.

Applications

  • Aircraft manufacturing, government laboratories, oil industry, electric power plants (nuclear and fossil), and general industry
  • Pharmaceutical validation and calibration
  • Bio-medical quality assurance
  • Condenser vacuum



Condec UPC5100/UPC5110 Specifications

Available Calibration Modes:
Gauge and vacuum

Overall accuracy:
±0.05% F.S. maximum. Accuracy statement includes all effects of linearity, hysteresis, repeatability and ambient temperature

Temperature Range:
Operating: 40°F to 140°F (4°C to 60°C)
Storage: 0°F to 185°F (-17°C to 85°C)
Relative humidity: 95% non-condensing

Pressure Media:
Clean dry gaseous nitrogen or clean dry air

Pressure Media Filter:
Rating: 7 microns nominal
Type: Field replaceable filter cartridge

Control Valves:
Type: Micro-metering with positive shut off, adjustable stop and replaceable seat, non-destructible
Material: Aluminum/stainless steel

Internal piping:
Tubing: 5/32 in. nylon tubing, 1/8 in. copper
Fittings: Brass

Test Port:
Style: Quick-disconnect type
Pressure rating: 600 psi maximum, connected or disconnected

Pressure Hose:
Quantity supplied: One output
Length: 5 feet, nominal

Vernier Control:
Volume: 0.25 cubic inches
Vernier Mechanical Rotation: 16 turns, nominal
Adjustable Sensitivity: 0.0005 psi, minimum
Material: Aluminum/stainless steel

Pressure Limit Monitor Gauge:
Size: Two-inch diameter
Range: 160 psi
Pressure supply gauge: 3000 psi
Regulator: 100 psi max
Construction: Self-relieving, single stage regulator

Internal Pressure Sensor:
Type: Bonded, metal foil strain gauge or equal
Sensitivity: 3 mV/V, nominal
Construction: Completely weld sealed stainless steel outer body and pressure cavity

UPC5100 External Carrying Case:
Type: Aluminum case with cover and carrying handle
Material thickness: 0.090 in. nominal
Finish: Grey polyurethane baked-enamel paint, textured finish

Current Display:
0-20.000 mA counting by 0.005 mA

Vacuum Converter:
Capable of generating 27 inches Hg vacuum stand alone or 30 inches Hg with external vacuum pump

Weight:
UPC5100: Less than 35 lb (15.9 kg) including all hoses and cables
