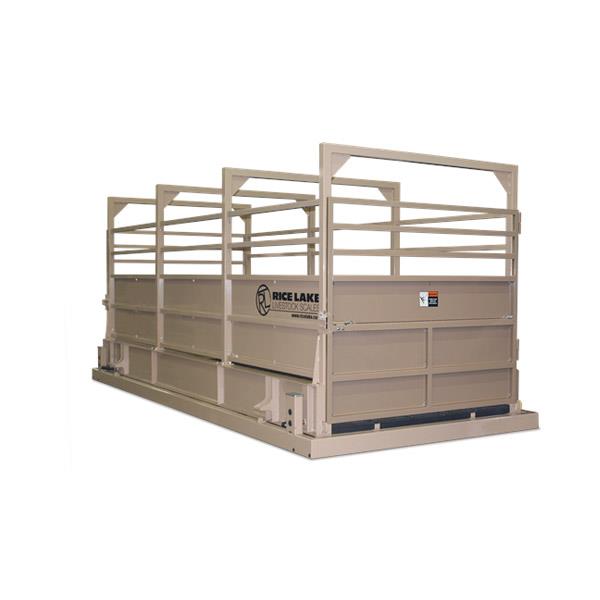

This scale combines the accuracy of fully electronic weighing technology with steel I-Beam weigh bridge designs typically found in heavy capacity vehicle weighing scales. With a wide range of sizes, the MAS-LC is the right choice for any stationary cattle weighing application.
Racks & Gates
3 inch thick wall tubing for the sectional uprights with 2 inch horizontal thick wall tubing connecting the uprights. Powder coated 11 gauge steel plate above the structural I-Beam is 4 feet tall and ensures reliable containment.
Deck Construction
The shipping weights of the MAS-LC scales tell the story. This scale is not only one of the heaviest in its class; it is also extreme duty. Steel I-Beam construction using W 16 inch x 26 lb per foot structural main beams with S 4 inch x 7.7 lb per foot cross beams with 1.5 x ¼ inch stringers between the beams. This weighbridge is built to last a generation or longer.
Flooring
The MAS-LC offers unmatched traction for animals in wet and slippery conditions with either X-Lug or X-Plank flooring. Both styles are made from durable, recycled plastic and rubber material that will never rot or harbor bacteria and moisture like wood flooring. X-Lug flooring provides a deep, aggressive tread and X-Plank flooring utilizes a less-aggressive, wheel-accessible tread.
Legal For Trade
Like all MAS series scales, the MAS-LC is certified for commercial use in both the United State and Canada. Certified scales are held to exacting design characteristics providing accurate weights allowing you to sell across the scale. Add a choice of digital weigh centers, printers, or remote displays and you will have an easy to use system that will provide years of proven catttle weighing performance.
[/ultimate_heading][vc_tta_accordion active_section="1" collapsible_all="true"][vc_tta_section title="MAS-LC Specifications" tab_id="1534538444606-3d1090d2-ff0a"][vc_row_inner][vc_column_inner width="1/3"][vc_column_text]Full Scale Capacity:
25,000 lb
Inside Dimension:
(L x W) 12 ft 1 in x 6 ft 6 in
(L x W) 14 ft x 6 ft 6 in
(L x W) 16 ft x 6 ft 6 in
(L x W) 18 ft x 6 ft 6 in
(L x W) 20 ft 11 in x 6 ft 6 in
(L x W) 20 ft 11 in x 9 ft
Outside Dimension:
(L x W) 13 ft x 8 ft
(L x W) 15 ft x 8 ft
(L x W) 17 ft x 8 ft
(L x W) 19 ft x 8 ft
(L x W) 22 ft x 10 ft[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]Decking:
X-Lug or X-Plank rubber deck with steel I-beam construction
Racks and Gates:
Constructed of three inch steel main tubes; two inch steel support tubes
Two end swing gates with latch (Gates swing outward from scale)
Height:
Ground to top of swinging gate: 6 ft 7 in
Ground to top of up and over rack: 8 ft 1 in
Ground to weigh platform: 8 inches[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]Warranty:
Two-year limited warranty on the weighbridge
Two-year parts and electronics warranty
Approvals:
NTEP CC 99-091
Measurement Canada AM 5284[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_tta_section][/vc_tta_accordion][/vc_column][/vc_row][vc_row el_id="recursos"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="Recursos / Descargas"][/ultimate_heading][vc_tta_accordion active_section="1" collapsible_all="true"][vc_tta_section title="Specifications Page" tab_id="1521654929872-40541558-89ff"][vc_column_text]
| TITLE | VIEW | ACTION |
|---|---|---|
| MAS-LC Series Load Cell Animal Scale |
[/vc_column_text][/vc_tta_section][vc_tta_section title="Sales Literature" tab_id="1535751298816-21297ffb-0aff"][vc_column_text]
| TITLE | CUSTOMIZE | VIEW | REQUEST | |
|---|---|---|---|---|
| MAS-LC Animal Scale | View |
Request
|
||
| Rice Lake Livestock Scale Overview Guide | View |
Request
|
||
| Importance of Cattle Shrink | View |
Download Only
|
||
| Livestock Instrumentation Compatibility Matrix | View |
Download Only
|
||
| Livestock Scale Instrumentation | View |
Request
|
||
| Livestock Space Requirement Guide | View |
Download Only
|
[/vc_column_text][/vc_tta_section][vc_tta_section title="Manuales" tab_id="1521655180754-e9ee7f8d-3f84"][vc_column_text]
| TITLE | VERSION | REVISION | VIEW | |
|---|---|---|---|---|
| 482-AG Technical Manual | 1 | -- | View | |
| Rice Lake Stationary Livestock Scale MAS-LC Installation Manual | -- | E | View | |
| 920i AC/DC Agricultural Multi-Animal Indicator | -- | -- | View | |
| 920i AG Operator Card | View | |||
| Portable Animal Scales AC/DC Power Supply Adaptor Box Kit Installation | -- | A | View |
[/vc_column_text][/vc_tta_section][/vc_tta_accordion][/vc_column][/vc_row][vc_row el_id="partes"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="PARTES"][/ultimate_heading][vc_accordion][vc_accordion_tab title="X-Lug Flooring"][vc_column_text]
| PART # | PRODUCT DESCRIPTION | LIST PRICE | CART |
|---|---|---|---|
| 132886 | 13 x 8 LC AG Scale Footprint: 154" long and 101" wide. X-Lug, Gate Option 4. 25,000 LB CAPACITY - AH10L-4 |
Call for Pricing
|
Add to Quote
|
| 132887 | 15 x 8 LC AG Scale Footprint: 176" long and 101" wide. X-Lug, Gate Option 4. 25,000 LB CAPACITY - AH10L-4 |
Call for Pricing
|
Add to Quote
|
| 132888 | 17 x 8 LC AG Scale Footprint: 200" long and 101" wide. X-Lug, Gate Option 4. 25,000 LB CAPACITY - AH10L-4 |
Call for Pricing
|
Add to Quote
|
| 151122 | 19 x 8 LC AG Scale Footprint: 224" long and 101" wide. X-Lug, Gate Option 4. 25,000 LB CAPACITY - AH10L-4 |
Call for Pricing
|
Add to Quote
|
| 132890 | 22 x 8 LC AG Scale Footprint: 258" long and 101" wide. X-Lug, Gate Option 4. 25,000 LB CAPACITY - AH10L-4 |
Call for Pricing
|
Add to Quote
|
| 132891 | 22 x 10 LC AG Scale Footprint: 259" long and 131" wide. X-Lug, Gate Option 4. 25,000 LB CAPACITY - AH10L-4 |
Call for Pricing
|
[/vc_column_text][/vc_accordion_tab][vc_accordion_tab title="X-Plank Flooring"][vc_column_text]
| PART # | PRODUCT DESCRIPTION | LIST PRICE | CART |
|---|---|---|---|
| 167390 | 13 x 8 LC AG Scale Footprint: 154" long and 101" wide. X-Plank, Gate Option 4. 25,000 LB CAPACITY - AH10L-4 |
Call for Pricing
|
Add to Quote
|
| 167637 | 15 x 8 LC AG Scale Footprint: 176" long and 101" wide. X-Plank, Gate Option 4. 25,000 LB CAPACITY - AH10L-4 |
Call for Pricing
|
Add to Quote
|
| 167391 | 17 x 8 LC AG Scale Footprint: 200" long and 101" wide. X-Plank, Gate Option 4. 25,000 LB CAPACITY - AH10L-4 |
Call for Pricing
|
Add to Quote
|
| 167109 | 19 x 8 LC AG Scale Footprint: 224" long and 101" wide. X-Plank, Gate Option 4. 25,000 LB CAPACITY - AH10L-4 |
Call for Pricing
|
Add to Quote
|
| 171628 | 22 x 8 LC AG Scale Footprint: 258" long and 101" wide. X-Plank, Gate Option 4. 25,000 LB CAPACITY - AH10L-4 |
Call for Pricing
|
Add to Quote
|
| 167435 | 22 x 10 LC AG Scale Footprint: 259" long and 131" wide. X-Plank, Gate Option 4. 25,000 LB CAPACITY - AH10L-4 |
Call for Pricing
|
[/vc_column_text][/vc_accordion_tab][/vc_accordion][/vc_column][/vc_row][vc_row el_id="opciones"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="OPCIONES"][/ultimate_heading][vc_accordion][vc_accordion_tab title=""][vc_column_text]
| PART # | PRODUCT DESCRIPTION | LIST PRICE | CART |
|---|---|---|---|
| 156758 | Adaptor,Box,AC/DC Portable Livestock Scales |
Call for Pricing
|
Add to Quote
|
| 131436 | Weigh Center,920i with Printer and Cabling MASM AG Scale |
Call for Pricing
|
Add to Quote
|
| 15547 | Cable,Universal Serial Interface (Both RS232/20mA) 25 Pin D-Sub Male To Blunt End 25-pin side-3-Red, 7-Black, 4 & 5 jumpered, 9-Green, 10-White |
|
Add to Quote
|
| 71630 | Ticket,Print 4-1/4x7 in 2 Part Carbonless, White Cover & Yellow Copy Attached at Top Rice Lake Scale Ticket 500/PKG |
|
Add to Quote
|
| 151307 | Flooring,X-Lug Rough Surface 8x2 IN x 82.25 Long 60% Rubber Coated 3/4 x 1 Wide Raised Ribs on Top Side Length +0.00/-0.50 |
Call for Pricing
|
Add to Quote
|
| 154676 | Flooring,X-Lug Rough Surface 8x2 IN x 112.25 Long 60% Rubber Coated 3/4 x 1 Wide Raised Ribs on Top Side Length +0.00/-0.50 |
Call for Pricing
|
Add to Quote
|
| 166440 | Flooring,Tongue & Groove PLANK Rough Surface 7x1-1/2 IN x 81.75 Long 60% Rubber Coated 40% HDPE Length +0.00/-0.50 |
Call for Pricing
|
Add to Quote
|
| 166441 | Flooring,Tongue & Groove PLANK Rough Surface 7x1-1/2 IN x 111.75 Long 60% Rubber Coated 40% HDPE Length +0.00/-0.50 |
Call for Pricing
|
Add to Quote
|
| 167689 | Indicator,920i Cattle 920i Digital Weight Indicator Single Channel With Group Animal Weighing Software 115 VAC |
Call for Pricing
|
Add to Quote
|
| 169478 | Indicator,920i Cattle 920i Digital Weight Indicator Single Channel With Group Animal Weighing Software 12VDC |
Call for Pricing
|
Add to Quote
|
| 130961 | Factory Scale Assembly Factory Scale Assembly Of Mobile And Portable AG Scales |
Call for Pricing
|
Add to Quote
|
| 170777 | Ag Pedestal Assm |
Call for Pricing
|
Add to Quote
|
| 131670 | Cable Assy,4 Pin Male CONN 168 Inch, AG Scale Weigh Center |
Call for Pricing
|
Add to Quote
|
| 23113 | Printer,Ticket TMU295 Epson Cool White 24VDC W/115-230VAC External Power Supply |
|
Add to Quote
|
| 168774 | Ag Enclosure, SAS/MAS Light Duty Weather Resistant Indicator / Printer Enclosure |
Call for Pricing
|
Add to Quote
|
| 171966 | Pedestal, SubFrame Style Used On The MAS-LC Series Livestock Scales |
Call for Pricing
|
Add to Quote
|
| 174071 | Indicator,482AG LCD Display, Rechargable Battery with 115VAC NEMA 5-15 Plug Stainless Steel Enclosure, With Quick Connect AG MULTI-ANIMAL SOFTWARE |
Call for Pricing
|
Add to Quote
|
| 177788 | CATTLE SCALE TRANSIENT PK Transient Protection Package, Cattle Scale |
Call for Pricing
|
Add to Quote
|
| 127561 | Cable ASSY,4 Pin Female CONN 132 Inch with Dust Cap for Animal Scale Indicator |
Call for Pricing
|
Add to Quote
|
| 156692 | 156692 |
Call for Pricing
|
Add to Quote
|
| 163083 | 163083 |
Call for Pricing
|
[/vc_column_text][/vc_accordion_tab][/vc_accordion][/vc_column][/vc_row][vc_row el_id="repuestos"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="PIEZAS DE REPUESTOS"][/ultimate_heading][vc_accordion][vc_accordion_tab title=""][vc_column_text]Las piezas de repuesto solo se pueden comprar a través de distribuidores capacitados y autorizados.
