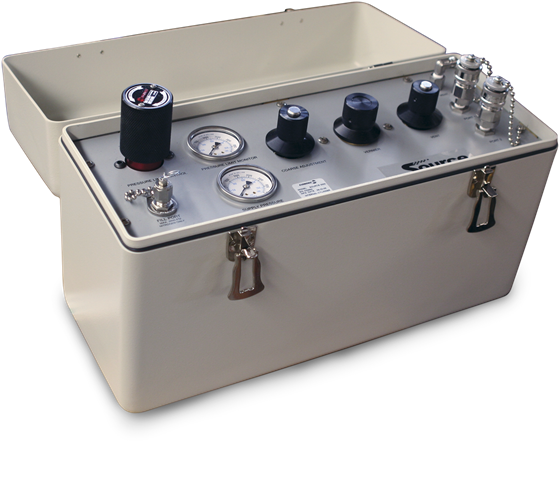

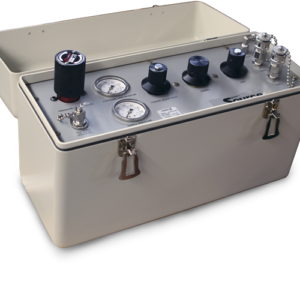

Source 3000 Portable Pneumatic Pressure Source

Source 3000 Portable Pneumatic Pressure Source

  • Self-contained nitrogen cylinder
  • “Overpressure protection”Condec REG 3000 regulator limits pressure to costly units under test
  • Charge your internal nitrogen cylinder to 3000 psi with provided adapter fitting
  • Two output (test) ports, for connecting to Device-Under-Test as well as a precision calibration standard (works with all major name brand pressure calibrators, digital gauges or indicators)
  • Precisely dial into required pressures with patented valve assembly
  • 15.2 cubic feet of nitrogen at 3000 psi
  • Aluminum carrying case
  • Front panel gauges inform operator of internal cylinder pressure level
  • Different technicians can operate the system and get identical results...every time
  • Pneumatic only - no hydraulics or distilled water messes
Categoría:

Descripción

Internal Pressure Cylinder:
15.2 cubic feet of nitrogen at 3000 psig
133 cubic inches, 3000 psig rating, 5000 psig test
pressure, 6061 aluminum material

Storage Temperature:
0°F to 185°F (-17.8°C to 85°C)

Pressure Media:
Clean dry gaseous nitrogen or equal

Pressure Regulator:
3000 psig, single stage, self venting, non-bleed

Pressure Gauges:
(2) Two-inch diameter, 0-4000 psig

Rupture Disc:
3200 psig nominal, stainless steel outer case

Pressure Filter:
20 micron nominal, field replaceable

Control Valves:
Orion 2C, micro-metering valve, replaceable soft seat, aluminum and stainless steel

Piping:
All stainless steel, seamless

Test Ports:
(2) Two, 5000 psig rated 3000 psig operating, 300 series stainless steel

Pressure Fittings:
Input fitting: 1/4 in. 37° female AN swivel on one end and 1/8 in. NPT male on other, to go to customer input hose
Output test ports: stainless steel quick-disconnect on one end and 1/4 in. NPT female on other, to go to customer output hose

Case:
All aluminum case with latched cover and handle

Weight:
25 lb (9.07 kg)
