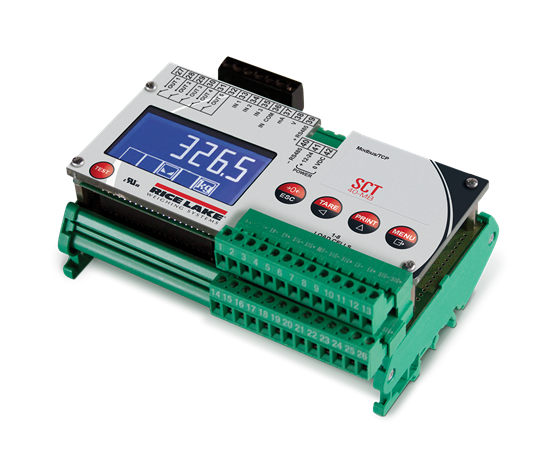

SCT-40

SCT-40

  • LCD display, 60 x 32 mm
  • Supports up to 8 independent reading channels for load cells
  • Displays weight, configuration, calibration and error conditions
  • DIN rail mounting
  • Theoretical calibration, real-weight calibration and error conditions
  • Push button or preset tare
  • Converts digital weight to analog output or optional DeviceNet™ , Profibus™ or EtherNet/IP™ protocols
  • Supports ASCII or MODBUS RTU protocols
  • Full scale analog cut put with zero setting and PLC correction of analog signal
  • Bit swapping selection for little endian and endian format
  • 3 digital inputs, 5 digital outputs
  • One serial port, RS-232 simplex and RS-485 connection
  • CD manual
Categoría:

Descripción

Compact Control

Designed for PLC systems that require seamless integration of weight data, the SCT-40 provides reliable signal-conditioning function without the cost or bulk of a full size weight indicator/controller. With eight independent load cell channels, the SCT-40 delivers more power and more control in a compact design.

The versatile SCT-40 is DIN-rail mountable within a cabinet or control panel, where it converts a scale’s load cell signal to analog output, serial output or a fieldbus protocol. Providing more interface surface than its predecessors, the SCT-40 is more technician-friendly and easier to use, which simplifies scale setup, calibration and operation. It comes complete with three digital inputs, five outputs, a 2.4 x 1.26 inch (60 x 32 millimeter) LCD display, annunciators for unit and weighing status, and push buttons for zero, tare and setpoint entry.
