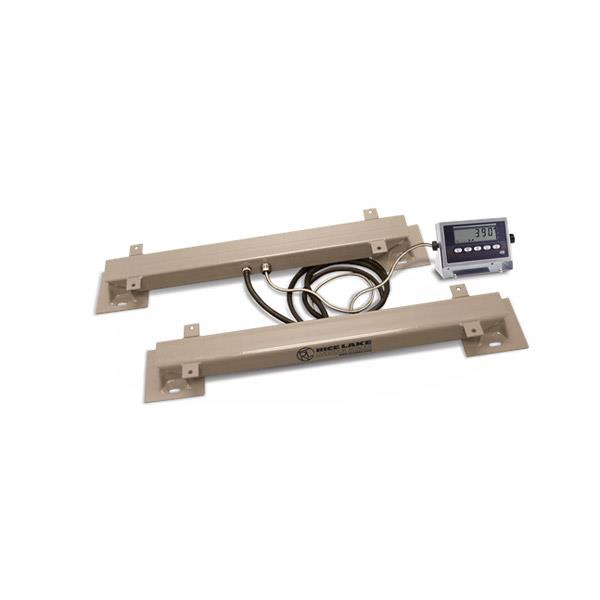

Each pair of load bars are the electric equivalent to one 350 ohm bridge. They are factory calibrated to a standardized output. On-site calibration is not normally required. Units come pre-wired and assembled. No summation box is required and the system may be used with any standard indicator.
Each load bar has built-in horizontal checking and unique flex bases to ensure accurate weighments in the roughest conditions. In fact, “U Series” load bars will take 10 times the shock load of a shear beam cell. If you have a tough weighing problem, give us a call. If one of our many weighing systems doesn’t already meet your requirements, we can engineer one that will.
Most load bars may be ordered in various lengths. Standard mounting holes are provided, but special mounting brackets may be ordered.
[/ultimate_heading][vc_tta_accordion active_section="1" collapsible_all="true"][vc_tta_section title="Farm Bar Specifications" tab_id="1534538444606-3d1090d2-ff0a"][vc_row_inner][vc_column_inner width="1/3"][vc_column_text]Safe Overload:
150%
Full Scale Output (FS):
3mv/V nominal**
** Output is standardized for each model of load bar, consult factory for details
Maximum Excitation:
15 VDC
Non Linearity:
0.02% FS[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]Hysterisis:
0.02% FS
Thermal Sensitivity Shift:
0.0008% of reading/° F
Thermal Zero Shift:
0.0015% FS/° F
Side Discrimination:
1000:1[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]Bridge Resistance:
350 ohms
Temperature Range:
-40 to 111°F (-40 to 44° C)
Cable Configuration:
8 ft between bars and 12 ft for the indicator
Warranty:
Two-year limited warranty[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_tta_section][/vc_tta_accordion][/vc_column][/vc_row][vc_row el_id="recursos"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="Recursos / Descargas"][/ultimate_heading][vc_tta_accordion active_section="1" collapsible_all="true"][vc_tta_section title="Specifications Page" tab_id="1521654929872-40541558-89ff"][vc_column_text]
| TITLE | VIEW | ACTION |
|---|---|---|
| Farm Bars Livestock Scale |
[/vc_column_text][/vc_tta_section][vc_tta_section title="Sales Literature" tab_id="1535737486450-600f56c3-a31c"][vc_column_text]
| TITLE | CUSTOMIZE | VIEW | REQUEST | |
|---|---|---|---|---|
| Rice Lake Farm Bar Universal Livestock Scale | View |
Request
|
||
| Livestock Instrumentation Compatibility Matrix | View |
Download Only
|
||
| Livestock Scale Instrumentation | View |
Request
|
[/vc_column_text][/vc_tta_section][vc_tta_section title="Manuales" tab_id="1521655180754-e9ee7f8d-3f84"][vc_column_text]
| TITLE | VERSION | REVISION | VIEW | |
|---|---|---|---|---|
| U Series Universal Weighbars Operator's Manual | -- | B | View | |
| IQ Plus 390-DC Installation Manual | 1.12 | A | View | |
| IQ Plus 390-DC Operator Card | -- | -- | View |
[/vc_column_text][/vc_tta_section][/vc_tta_accordion][/vc_column][/vc_row][vc_row el_id="partes"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="PARTES"][/ultimate_heading][vc_accordion][vc_accordion_tab title="10,000"][vc_column_text]
| PART # | PRODUCT DESCRIPTION | LIST PRICE | CART |
|---|---|---|---|
| 127498 | Scale,10000U 2 Loadbar System Standard Bar 36 Inch Length 10000lb/5000kg Capacity Includes IQ+390 with Live Weigh Programming |
|
Add to Quote
|
| 127502 | Scale,10000U 2 Loadbar System Standard Bar 48 Inches Long 10000lb/5000kg Capacity Includes IQ+390 with Live Weigh Programming |
|
Add to Quote
|
| 127504 | Scale,10000U 2 Loadbar System Standard Bar 60 Inch Length 10000lb/5000kg Capacity Includes IQ+390 with Live Weigh Programming |
|
Add to Quote
|
| 127506 | Scale,10000U 2 Loadbar System Standard Bar 72 Inch Length 10000lb/5000kg Capacity Includes IQ+390 with Live Weigh Programming |
|
[/vc_column_text][/vc_accordion_tab][vc_accordion_tab title="10,000 Without Instrumentation"][vc_column_text]
| PART # | PRODUCT DESCRIPTION | LIST PRICE | CART |
|---|---|---|---|
| 152024 | Scale,10000U 2 Loadbar System Standard Bar 36 Inch Length 10000lb/5000kg Capacity without Indicator |
|
Add to Quote
|
| 152025 | Scale,10000U 2 Loadbar System Standard Bar 48 Inches Long 10000lb/5000kg Capacity without Indicator |
|
Add to Quote
|
| 152026 | Scale,10000U 2 Loadbar System Standard Bar 60 Inch Length 10000lb/5000kg Capacity without Indicator |
|
Add to Quote
|
| 152027 | Scale,10000U 2 Loadbar System Standard Bar 72 Inch Length 10000lb/5000kg Capacity without Indicator |
|
[/vc_column_text][/vc_accordion_tab][vc_accordion_tab title="2,500"][vc_column_text]
| PART # | PRODUCT DESCRIPTION | LIST PRICE | CART |
|---|---|---|---|
| 127519 | Scale,2500U 2 Loadbar System Standard Bar 22 Inches Long 2500lb/1250kg Capacity Includes IQ+390 with Live Weigh Programming |
|
[/vc_column_text][/vc_accordion_tab][vc_accordion_tab title="2,500 Without Instrumentation"][vc_column_text]
| PART # | PRODUCT DESCRIPTION | LIST PRICE | CART |
|---|---|---|---|
| 152016 | Scale,2500U 2 Loadbar System Standard Bar 22 Inches Long 2500lb/1250kg Capacity Without Indicator |
|
[/vc_column_text][/vc_accordion_tab][vc_accordion_tab title="5,000"][vc_column_text]
| PART # | PRODUCT DESCRIPTION | LIST PRICE | CART |
|---|---|---|---|
| 130259 | Scale,5000U 2 Loadbar System Standard Bar 26 Inch Length 5000lb/2500kg Capacity Includes IQ+390 with Live Weigh Programming |
|
Add to Quote
|
| 127761 | Scale,5000U 2 Loadbar System Standard Bar 33 Inch Length 5000lb/2500kg Capacity Includes IQ+390 with Live Weigh Programming |
|
Add to Quote
|
| 130264 | Scale,5000U 2 Loadbar System Standard Bar 36 Inch Length 5000lb/2500kg Capacity Includes IQ+390 with Live Weigh Programming |
|
Add to Quote
|
| 128678 | Scale,5000U 2 Loadbar System Standard Bar 40 Inches Long 5000lb/2500kg Capacity Includes IQ+390 with Live Weigh Programming |
|
Add to Quote
|
| 128679 | Scale,5000U 2 Loadbar System Standard Bar 44 Inches Long 5000lb/2500kg Capacity Includes IQ+390 with Live Weigh Programming |
|
Add to Quote
|
| 130269 | Scale,5000U 2 Loadbar System Standard Bar 48 Inch Length 5000lb/2500kg Capacity Includes IQ+390 with Live Weigh Programming |
|
[/vc_column_text][/vc_accordion_tab][vc_accordion_tab title="5,000 Without Instrumentation"][vc_column_text]
| PART # | PRODUCT DESCRIPTION | LIST PRICE | CART |
|---|---|---|---|
| 152018 | Scale,5000U 2 Loadbar System Standard Bar 26 Inch Length 5000lb/2500kg Capacity without Indicator |
|
Add to Quote
|
| 152019 | Scale,5000U 2 Loadbar System Standard Bar 33 Inch Length 5000lb/2500kg Capacity without Indicator |
|
Add to Quote
|
| 152020 | Scale,5000U 2 Loadbar System Standard Bar 36 Inch Length 5000lb/2500kg Capacity without Indicator |
|
Add to Quote
|
| 152021 | Scale,5000U 2 Loadbar System Standard Bar 40 Inches Long 5000lb/2500kg Capacity without Indicator |
|
Add to Quote
|
| 152022 | Scale,5000U 2 Loadbar System Standard Bar 44 Inches Long 5000lb/2500kg Capacity Without Indicator |
|
Add to Quote
|
| 152023 | Scale,5000U 2 Loadbar System Standard Bar 48 Inch Length 5000lb/2500kg Capacity without Indicator |
|
[/vc_column_text][/vc_accordion_tab][/vc_accordion][/vc_column][/vc_row][vc_row el_id="opciones"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="OPCIONES"][/ultimate_heading][vc_accordion][vc_accordion_tab title=""][vc_column_text]
| PART # | PRODUCT DESCRIPTION | LIST PRICE | CART |
|---|---|---|---|
| 127776 | Wiring ASSY,Cable with Rubber Hose Shield 8 Foot Long 2500U/5000U/10000U |
|
Add to Quote
|
| 159788 | Cable,Extention Bar |
Call for Pricing
|
Add to Quote
|
| 127556 | Cable ASSY,4 Pin Male CONN 144 Inch for Animal Scale Indicator |
|
Add to Quote
|
| 127777 | Connector ASSY,Inline w/ 3 Foot SST Flex Conduit and Dustcap |
Call for Pricing
|
Add to Quote
|
| 23113 | Printer,Ticket TMU295 Epson Cool White 24VDC W/115-230VAC External Power Supply |
|
Add to Quote
|
| 15547 | Cable,Universal Serial Interface (Both RS232/20mA) 25 Pin D-Sub Male To Blunt End 25-pin side-3-Red, 7-Black, 4 & 5 jumpered, 9-Green, 10-White |
|
Add to Quote
|
| 71630 | Ticket,Print 4-1/4x7 in 2 Part Carbonless, White Cover & Yellow Copy Attached at Top Rice Lake Scale Ticket 500/PKG |
|
Add to Quote
|
| 48815 | Indicator,Desk IQ+390DC Battery 115VAC Wall Adapter SST Enclosure,6 Button With On/Off Key,Count Mode |
|
Add to Quote
|
| 65738 | Program,Live Weigh for IQ+390-DC, Includes Eprom and Addendum |
|
