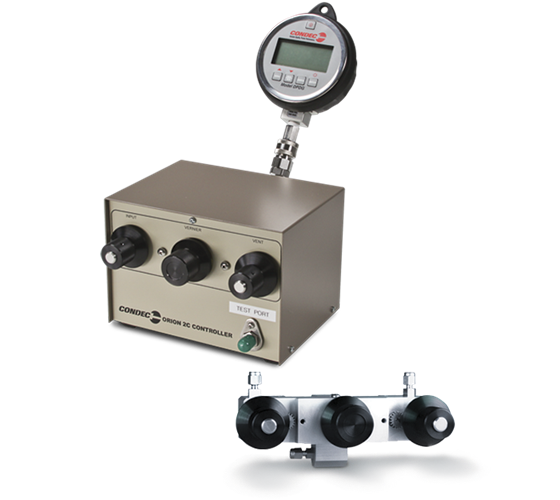

Orion 2C/Orion 3A Precision Pneumatic Controllers
- System working pressure:
- Orion 2C, non-cased/cased versions: Up to 3,000 psi
- Orion 3A, non-cased version: Up to 10,000 psi
- Orion 3A, cased version: Up to 10,000 psi based on model
- Orion 2C: Aluminum body, Buna-N o-rings standard
- Orion 3A: Stainless steel body, Viton o-rings standard
- Precision patented vernier to precisely “dial in” a selected pressure
- Fingertip closed system pressure adjustment to better than 0.0005 psi
- Soft seat construction and adjustable stop; immune to over tightening
- Two low-torque, fine micro-metering valves with positive shut off
- Two test ports allow for multiple applications:
- Non-cased models (see below for optional seal plug)
- Cased models, number of test ports based on version
