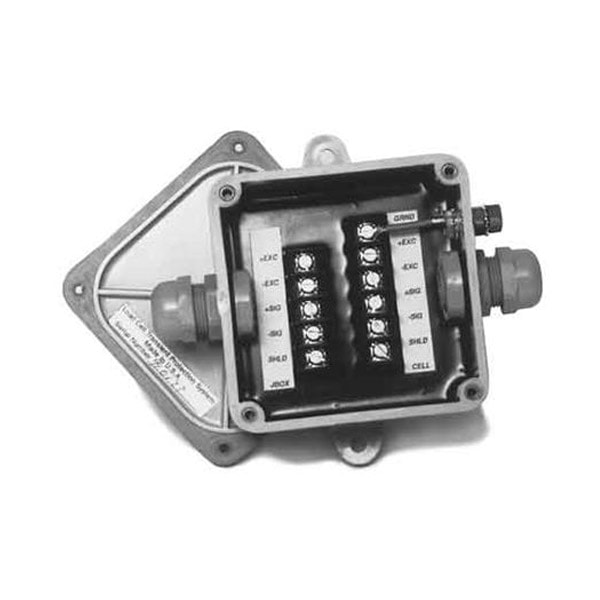

LCP-1 DC Transient Protector

LCP-1 DC Transient Protector

  • Low cost, non-serviceable
  • Effective series protection for strain gauge transducers
  • Encapsulated circuitry ensures positive protection against fungus or corrosion on boards
  • Two nylon strain reliefs for 0.187 in-0.312 in (4.7 mm-7.9 mm) diameter cable
Categoría:

Descripción

[vc_row el_id="informacion"][vc_column][ultimate_heading]The economical LCP-1 DC Transient Protector can be used indoors or outdoors. It provides series protection for strain gauge transducers.[/ultimate_heading][vc_tta_accordion active_section="1" collapsible_all="true"][vc_tta_section title="LCP-1 DC Transient Protection Specifications" tab_id="1534538444606-3d1090d2-ff0a"][vc_row_inner][vc_column_inner width="1/3"][vc_column_text]Protection Type:
Four-channel series type with separate shield

Maximum Excitation Voltage:
18 VDC or 18 VAC

Clamping Voltage:
75 VDC or 75 VAC

Clamping Time:
<100 nanoseconds typical

Peak Surge Currents:
5,000 Amps any line to ground and  5,000 Amps excitation to excitation
Maximum Serial Transmission Rate:
30 Kbaud[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]Grounding:
Through a .25 in (6.35 mm) lug to a 20 ft (6.1 m) insulated #10 AWG ground wire provided

Cable Fitting:
(2) Standard nylon strain relief for 0.187 in-0.312 in (4.7 mm-7.9 mm) diameter cable

Enclosure:
Chemically-resistant PVC.  This device, for outdoor or indoor service, is not intended for washdown service (NEMA 4) or for submersion (NEMA 6). Optional NEMA 4X available

Operating Temperature:
14°F to 104°F (-10°C to 40°C) consistent with NTEP guidelines[/vc_column_text][/vc_column_inner][vc_column_inner width="1/3"][vc_column_text]Leakage:
7,500 MΩ minimum

Dimensions:
4.0 W x 4.0 H x 2.50 in D (103.2 W x 103.2 H x 63.5 mm D)

Warranty:
One-year limited[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_tta_section][/vc_tta_accordion][/vc_column][/vc_row][vc_row el_id="recursos"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="Recursos / Descargas"][/ultimate_heading][vc_tta_accordion active_section="1" collapsible_all="true"][vc_tta_section title="Specifications Page" tab_id="1521654929872-40541558-89ff"][vc_column_text]

LCP-1 DC Transient Protection
 View
  Email

[/vc_column_text][/vc_tta_section][vc_tta_section title="Manuales" tab_id="1521655180754-e9ee7f8d-3f84"][vc_column_text]

LCP-1 Load Cell Transient Protection System Technical Card -- B  View  Email

[/vc_column_text][/vc_tta_section][/vc_tta_accordion][/vc_column][/vc_row][vc_row el_id="partes"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="PARTES"][/ultimate_heading][vc_accordion][vc_accordion_tab title=""][vc_column_text]

21143 DC Protection,LCP-1 1/2in NPT Fitting

[/vc_column_text][/vc_accordion_tab][/vc_accordion][/vc_column][/vc_row][vc_row el_id="opciones"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="OPCIONES"][/ultimate_heading][/vc_column][/vc_row][vc_row el_id="repuestos"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="PIEZAS DE REPUESTOS"][/ultimate_heading][vc_accordion][vc_accordion_tab title=""][vc_column_text]Las piezas de repuesto solo se pueden comprar a través de distribuidores capacitados y autorizados.

Para localizar un distribuidor en su área, llámenos al 997-59665  o complete una solicitud en línea.[/vc_column_text][/vc_accordion_tab][/vc_accordion][/vc_column][/vc_row]
