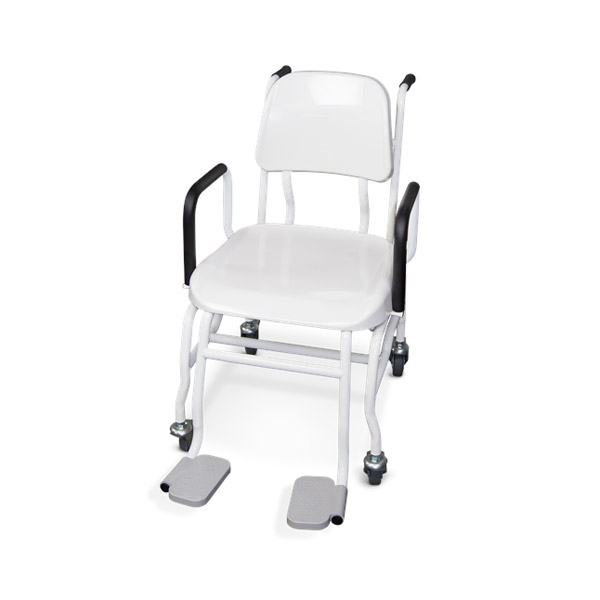

Digital Chair Scale 560-10-1

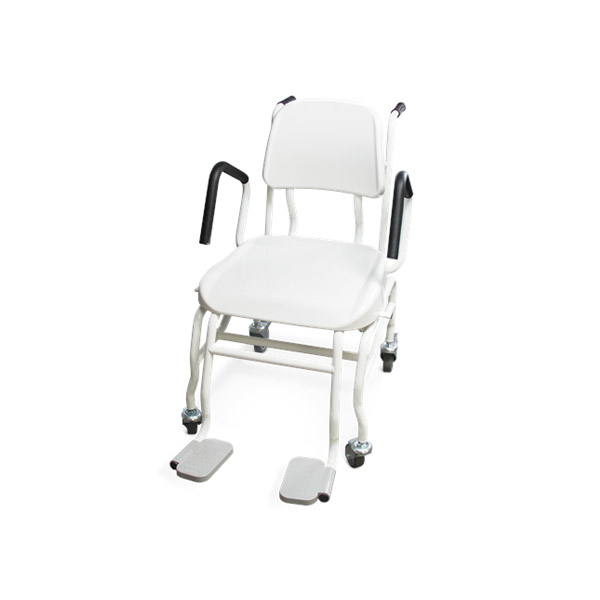

Digital Chair Scale 560-10-1 - Imagen 2

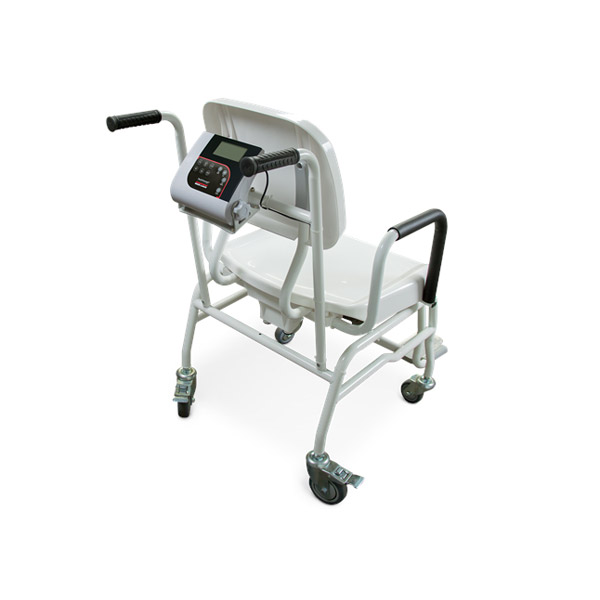

Digital Chair Scale 560-10-1 - Imagen 3

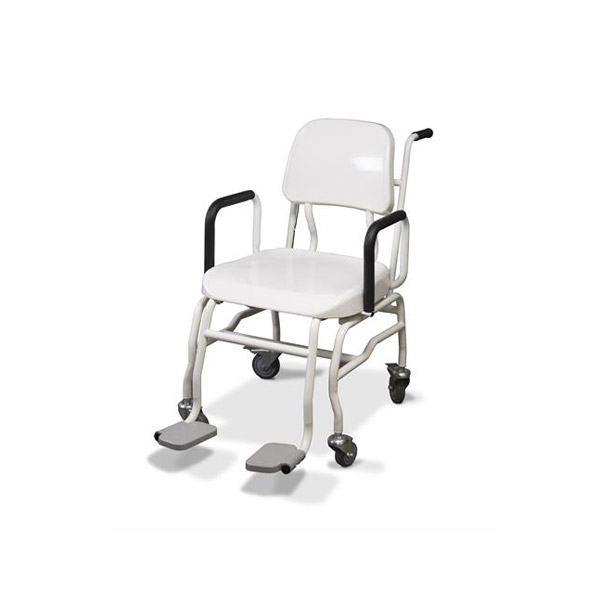

Digital Chair Scale 560-10-1 - Imagen 4

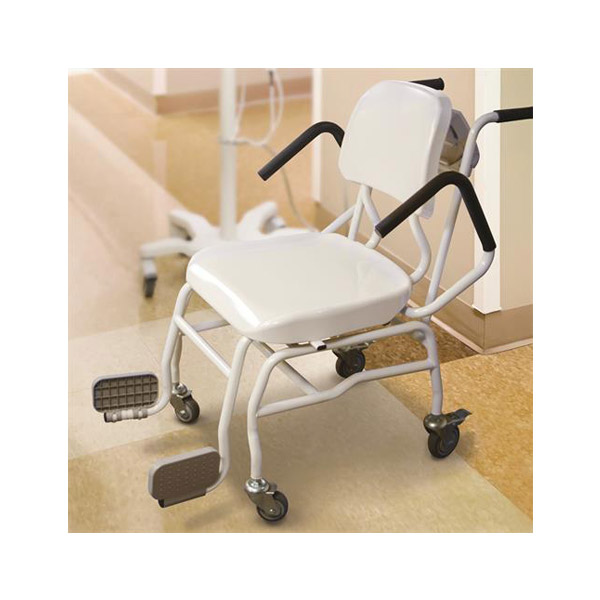

Digital Chair Scale 560-10-1 - Imagen 5

Digital Chair Scale 560-10-1

  • Enameled tubular steel frame
  • Four heavy-duty caster wheels (rear wheels locking)
  • Lift-away arms
  • Side-folding footrests
  • Push-button LCD display
  • BMI (body mass index) function
  • Hold function
  • Units of measure: lb only, kg only, lb/kg
  • Motiontrap™ movement compensation technology
  • EHR capable with integrated USB
  • Six AA alkaline batteries (included) or optional AC power
Categoría:

Descripción

[vc_row el_id="informacion"][vc_column][ultimate_heading main_heading="Reliable and Cost-Effective"]With the 120 digital weight indicator, there is no need to sacrifice quality for price. This digital weight indicator is designed to be a reliable, cost-effective solution for material handling or shipping and receiving applications. The 120 drives up to four 350Ω load cells while three-stage digital filtering provides stable, accurate weight data. The 120’s five-button tactile front panel and easy-to-read LED display help to make scale operations effortless. Two independent communication ports provide full EDP and print ticket programmability.[/ultimate_heading][vc_tta_accordion active_section="1" collapsible_all="true"][vc_tta_section title="Digital Chair Scale 560-10-1 Specifications" tab_id="1521654435692-d6b73376-e0b1"][vc_column_text]

Capacity:
660 lb x 0.2 lb (300 kg x 0.1 kg)Dimensions:
Overall: (W x L x H) 20.1 x 42.9 x 36.4
Seat: (W x L x H) 20 x 19.5 x 2 in
Arm: (W x L x H) 10.5 x 10.5 in

Power:
9 VDC provided by six AA alkaline batteries (included) or 120 V/230 VAC adaptor (optional)

 Battery Type:
Six AA alkalineBattery Use:
25 hours continuous use with batteries

Warranty:
Two-year limited warranty

[/vc_column_text][/vc_tta_section][vc_tta_section title="Digital Chair Scale 560-10-1 Dimensions" tab_id="1521654435774-9820b471-daa7"][vc_single_image image="2613" img_size="full" label=""][vc_column_text]

Dimensiones
 A  20.1 in (510.0 mm)  E  5.9 in (150.0 mm)
B  17.3 in (440.0 mm)  F  42.9 in (1090.0 mm)
 C  20.1 in (510.0 mm)  AG  34.6 in (880.0 mm)
 D  36.4 in (925.0 mm)

[/vc_column_text][/vc_tta_section][/vc_tta_accordion][/vc_column][/vc_row][vc_row el_id="recursos"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="Recursos / Descargas"][/ultimate_heading][vc_tta_accordion active_section="1" collapsible_all="true"][vc_tta_section title="Specifications Page" tab_id="1521654929872-40541558-89ff"][vc_column_text]

Digital Chair Scale 560-10-1
 View
  Email

[/vc_column_text][/vc_tta_section][/vc_tta_accordion][/vc_column][/vc_row][vc_row el_id="partes"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="PARTES"][/ultimate_heading][vc_accordion][vc_accordion_tab title=""][vc_column_text]

166644
Scale, Chair Model 560-10-1 660lb(300kg) x 0.2lb(100g) includes ABS seat, lift away armrests, foldable footrests, 4 swivel wheels (rear lockable)

[/vc_column_text][/vc_accordion_tab][/vc_accordion][/vc_column][/vc_row][vc_row el_id="opciones"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="OPCIONES"][/ultimate_heading][vc_accordion][vc_accordion_tab title=""][vc_column_text]

 Part#  PRODUCT DESCRIPTION LIST PRICE CART
 133077  Power Supply, +9.OV Wall rated input voltage 100240VAC, Operating range 50/60Hz, rated input frequency 0.3 max, UL approved  Llamar para precio
 102508  Adapter, 220VAC AC Healthweigh 9VDC 500MA  Llamar para precio
 81076  Printer, Tape TM-U220D RS232 Serial, Universal power Supply, US Power Cord Epson  List price: $420.00
 186830  Cable Assy,Scale to Prntr RS-232, 6ft, 25-pin D-sub male to RJ-45  Llamar para precio

[/vc_column_text][/vc_accordion_tab][vc_accordion_tab title="Primary Component Parts"][vc_column_text]

131924 Board ASSY,CPU Desk 120 With Volts Cal. For Use With Cord Grip Style. 10V/Meter Immunity
78610 Overlay, Membrane Switch Panel Desk 120 Indicator
131925 Power Supply, 9V Wall 115/230VAC 9VDC 550mA Wall Mount Unregulated Adapter Center Pos.
64794 Cable,Null Modem DB9F/M DB9F To DB9M, 6 feet

[/vc_column_text][/vc_accordion_tab][/vc_accordion][/vc_column][/vc_row][vc_row el_id="repuestos"][vc_column][vc_empty_space height="20px"][ultimate_heading main_heading="PIEZAS DE REPUESTOS"][/ultimate_heading][vc_accordion][vc_accordion_tab title=""][vc_column_text]Las piezas de repuesto solo se pueden comprar a través de distribuidores capacitados y autorizados.

Para localizar un distribuidor en su área, llámenos al 997-59665  o complete una solicitud en línea.[/vc_column_text][/vc_accordion_tab][/vc_accordion][/vc_column][/vc_row]
