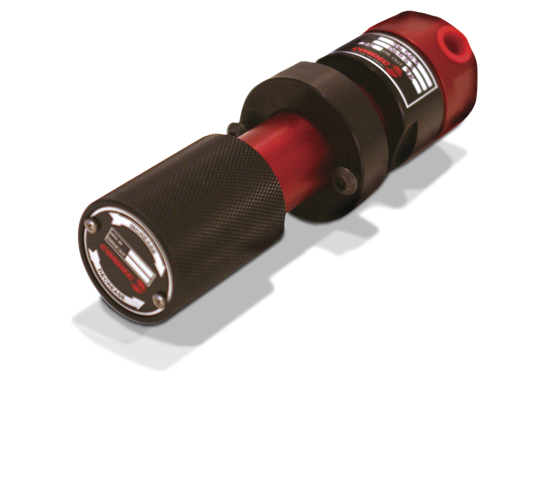

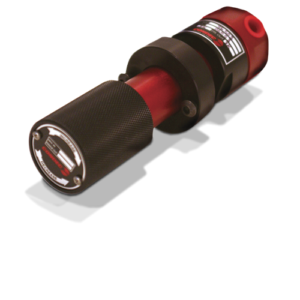

Condec REGulator Series

Condec REGulator Series

  • Same quality Regulator as used in our Portable Pressure Calibrators
  • Low Torque required by operator for pressure adjustment
  • Single Stage, Venting Type with spring controlled piston
  • Integral inlet filter used to promote long life when used in clean systems
  • Adjustable Panel Mounting, see diagram on next page for dimensional requirements
  • May be integrated with one of our Burst Discs and/or Pressure Relief Valves for FAIL SAFE operator safety when installing in a system. When integrated with one of our CONDEC patented fingertip-adjustable Orion Series or MPV Needle Valves, you will have the advantages of proper regulation of your source, as well as precise finger-tip adjustment of your downstream system output
Categoría:

Descripción

Data:
Maximum Primary (inlet) Pressure:
3000 psig (206.9 Bar)
4 Ports Standard:
2 Inlet Ports - 1/4-18 NPT
2 Outlet Ports - 1/4-18 NPT
Operating Temperature:
0ºF to +140ºF (-18ºC to +60ºC)

Materials:
Body: Aluminum
Cartridge Valve: Teflon, Brass, Stainless Steel
Seals: Nitrile

Dimensions:
Height: Approximately 7-1/2 inches (190 mm) when fully opened
Body Diameter: 2 inches (50.8 mm)
Port Dimensions From Bottom of Base: 13/32 in. (10.3 mm)
Panel Mount Adjustment (from bottom of regulator base to rear surface of panel): 3 to 4 inches
(76.2 mm to 101.6 mm)
