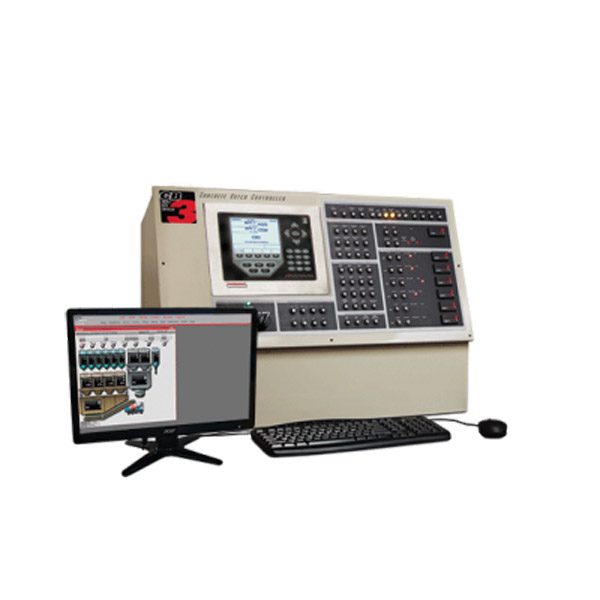

CB-3 Concrete Batch Controller

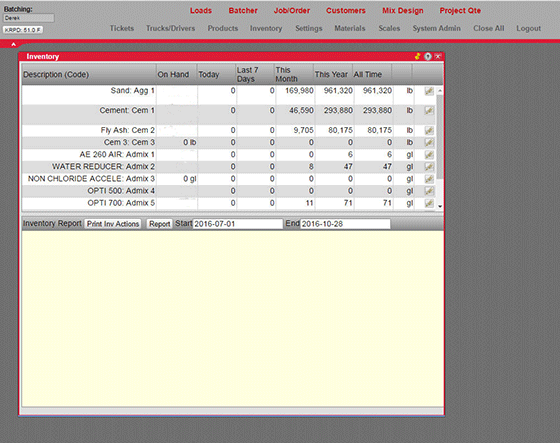

CB-3 Concrete Batch Controller - Imagen 2

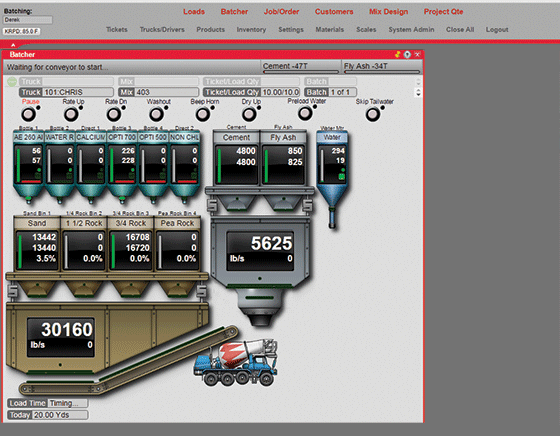

CB-3 Concrete Batch Controller - Imagen 3

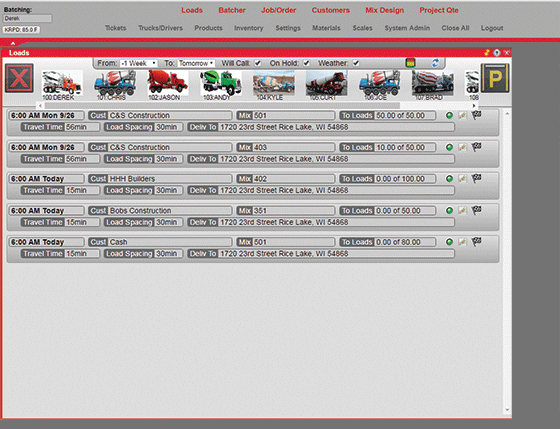

CB-3 Concrete Batch Controller - Imagen 4

CB-3 Concrete Batch Controller

  • Onboard industrial PC interface
  • 920i® digital weight indicator/controller
  • One aggregate and one cement scale, optional weighed water scale
  • Standard manual override controls
  • Automatic aeration control for cement silos and weigh hoppers
  • Automatic dust collection outputs
  • Multiple free fall values per material
  • Precision control of inching gates for aggregate and cement discharge
  • Auto-jogging gross, ideal targets and net mode batching
  • Material usage by day/week/month/year and on-site inventory reporting
  • Multiple browser-based windows and simultaneous processes to prepare the next batch while CB-3 is batching
  • Automatic daily ticket and system backups
  • 4 dual or 8 single speed aggregates
  • 4 dual or 8 single speed cements
  • Optional dual moisture probe interface (supports 4-20mA)
Categoría:

Descripción

Serial Ports:
4 ports on CPU board support up to 115,200 bps; optional dual-channel serial expansion boards available
Port 1: Full-duplex RS-232
Port 2: RS-232 with CTS/RTS via DB-9 connector; PS/2 keyboard interface
Port 3: Full-duplex RS-232, 20 mA output
Port 4: Full-duplex RS-232, 2-wire RS-485, 20 mA output

Warranty:
Two-year limited warranty

Keyboard:
27-key membrane panel, PS/2 port for external keyboard connection

Display:
(W x H) 4.6 in x 3.4 in (116 mm x 86 mm), 320 x 240 pixel VGA liquid crystal display
(LCD) module with adjustable contrast, 75 Hz scan rate 26,000 cd/m2 brightness
